Thread: NSX Health Check Service

  1. #501
    Join Date
    Sep 2008
    Location
    Bucks, UK
    Posts
    2,003
    Blog Entries
    2439

    Default

    Click image for larger version.

Name:	PistonRemoved.JPG
Views:	133
Size:	185.1 KB
ID:	7894 Click image for larger version.

Name:	PistonWiped.JPG
Views:	134
Size:	162.5 KB
ID:	7895

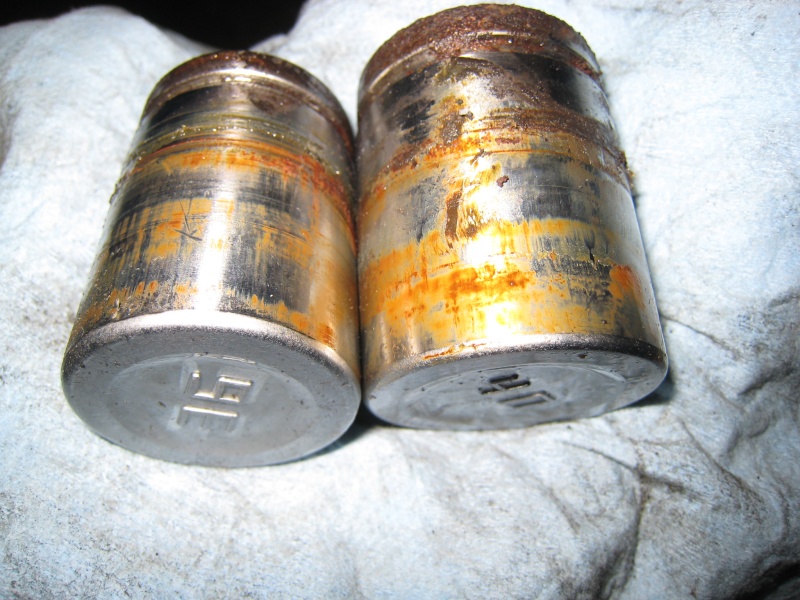

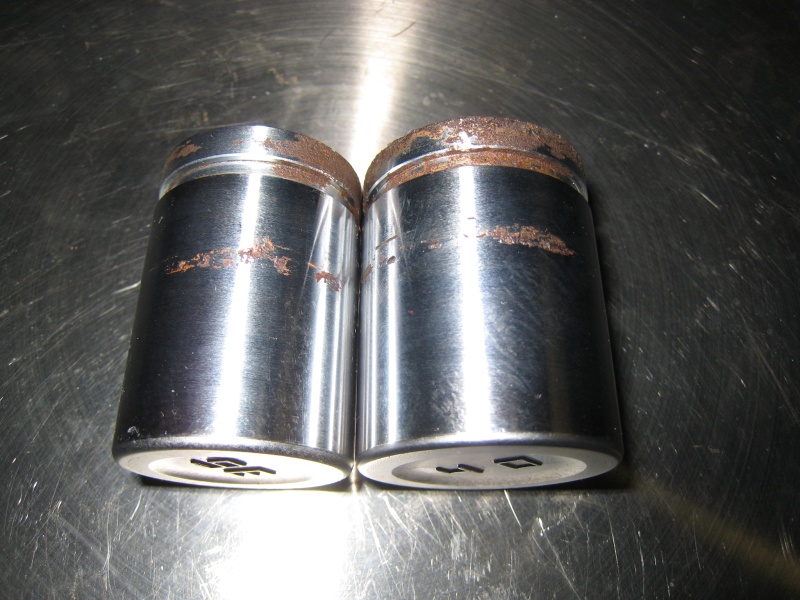

    No wonder why the pistons were so heavy to move. I’m afraid none of them were re-usable.

    Click image for larger version.

Name:	AllSixNotReUsable.JPG
Views:	137
Size:	185.1 KB
ID:	7896 Click image for larger version.

Name:	NewPistons.JPG
Views:	141
Size:	218.0 KB
ID:	7897

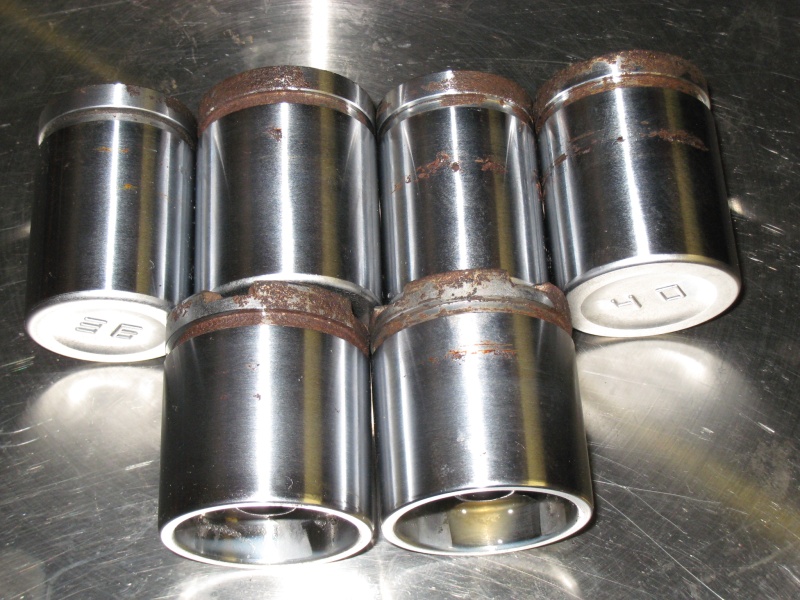

    In fact, none of the pistons on all four corners were re-usable.

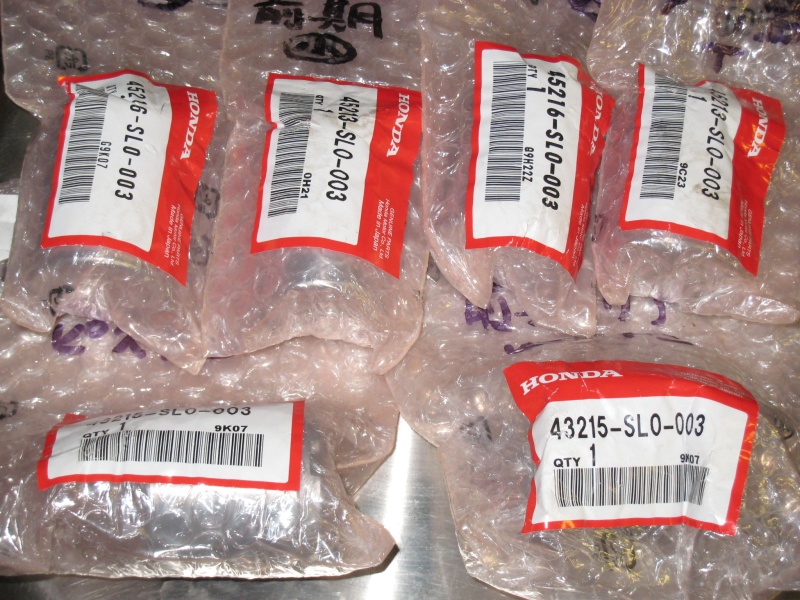

    All six pistons are going to be replaced with the new ones.


    Click image for larger version.

Name:	NotGoingToReUse.JPG
Views:	135
Size:	199.6 KB
ID:	7898

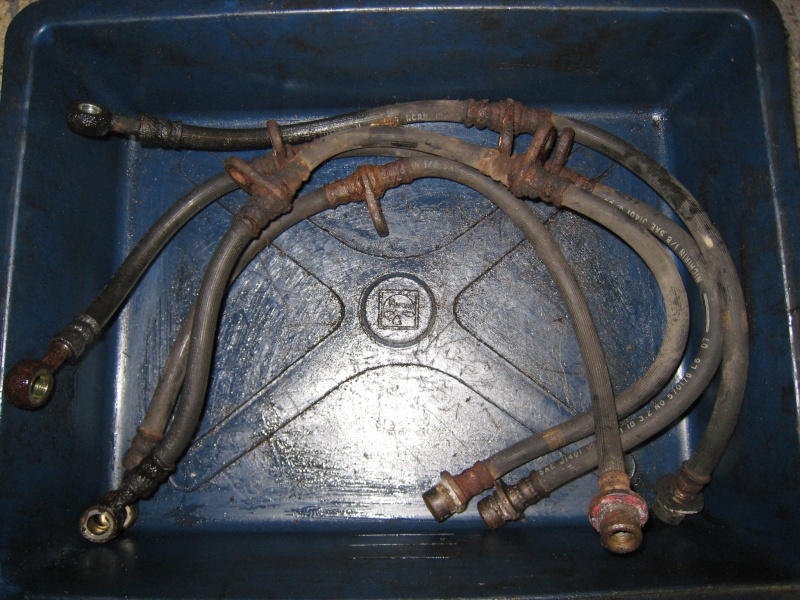

    I don’t think I’ll be re-using these hoses ….

    Challenge continues…


    Kaz

  2. #502
    Join Date
    Sep 2008
    Location
    Bucks, UK
    Posts
    2,003
    Blog Entries
    2439

    Default

    While cleaning the brake callipers, wanted to finish the re-built of RH drive shaft. The inboard joint side was already done while I was working on the previous NSX so needs to finish the outer one.

    Click image for larger version.

Name:	Cleaned.JPG
Views:	127
Size:	128.7 KB
ID:	7919

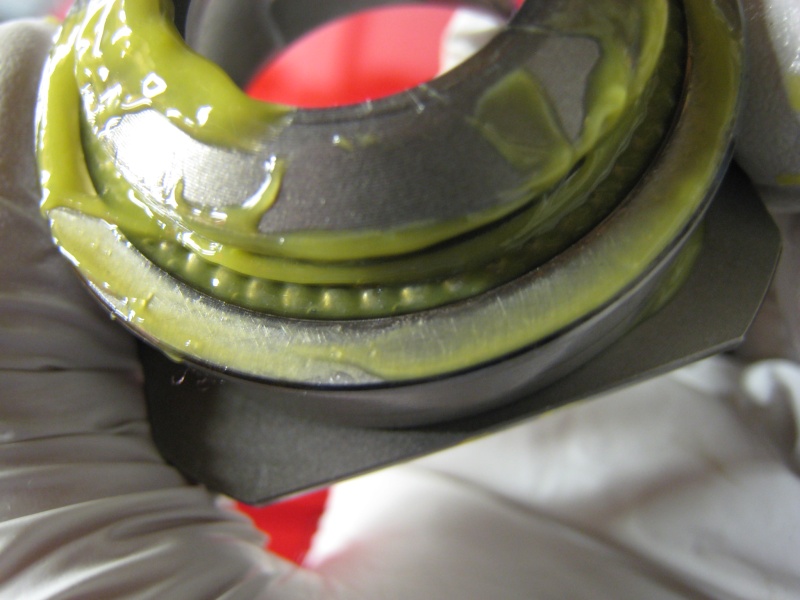

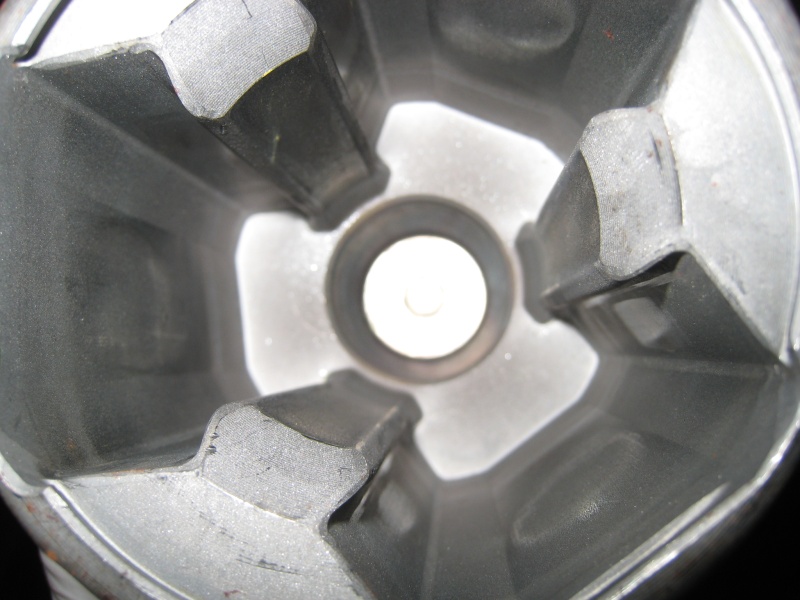

    Cleaned the outboard joint and inspected the inner wall. You need to clean it to this level to inspect it thoroughly.

    Click image for larger version.

Name:	Roller01.JPG
Views:	130
Size:	122.6 KB
ID:	7920 Click image for larger version.

Name:	Roller02.JPG
Views:	132
Size:	115.5 KB
ID:	7921 Click image for larger version.

Name:	Roller03.JPG
Views:	124
Size:	157.6 KB
ID:	7922

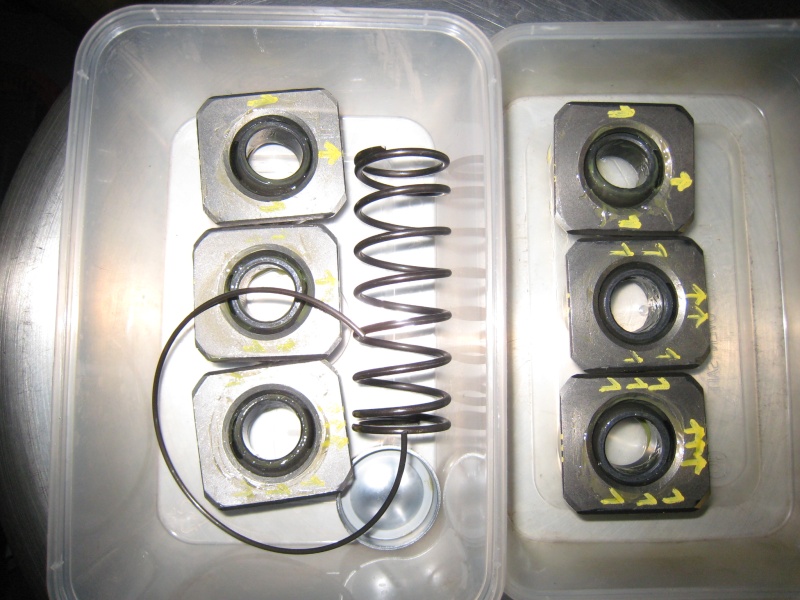

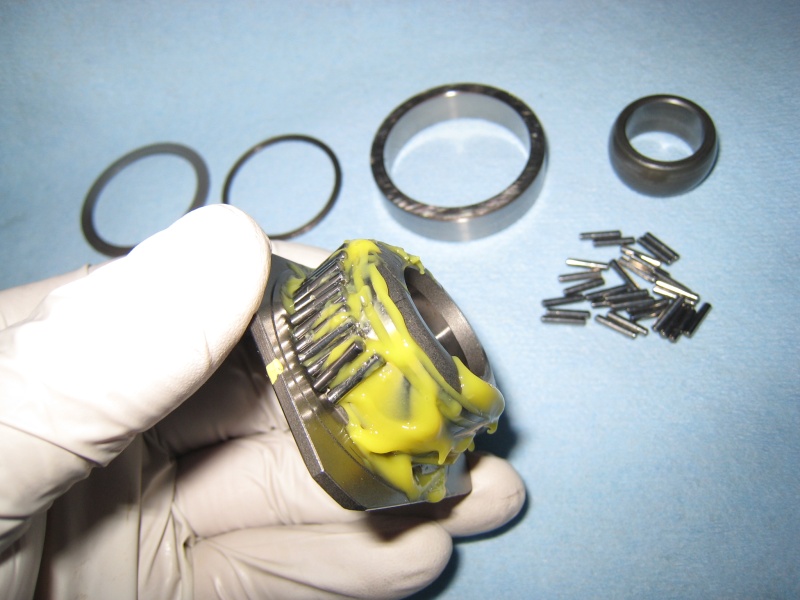

    Planting the tiny pin bearings with new grease and filling the housing up with extra grease before closing it.
    All six rollers are now ready for the re-built.

  3. #503
    Join Date
    Sep 2008
    Location
    Bucks, UK
    Posts
    2,003
    Blog Entries
    2439

    Default

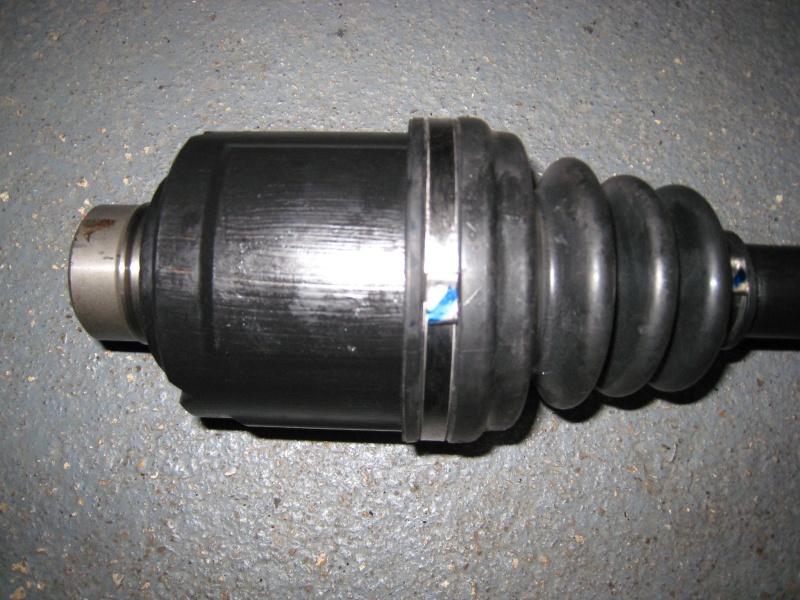

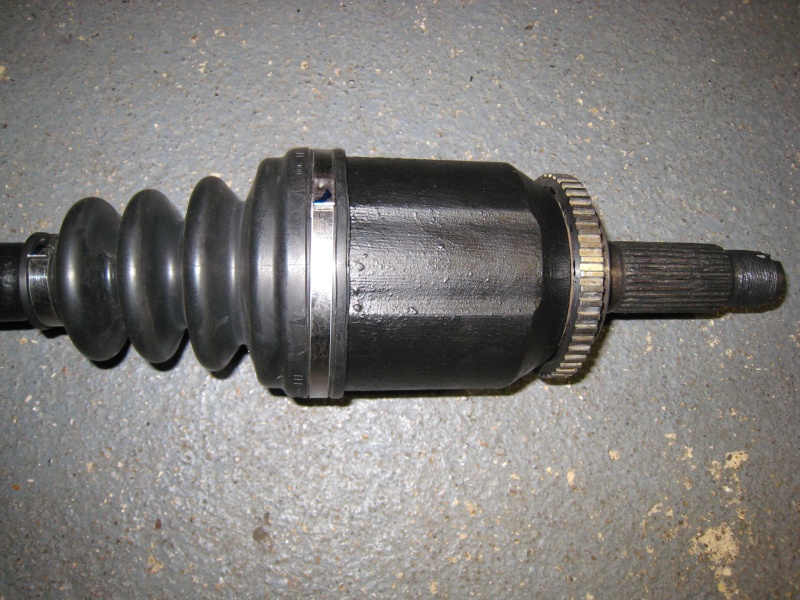

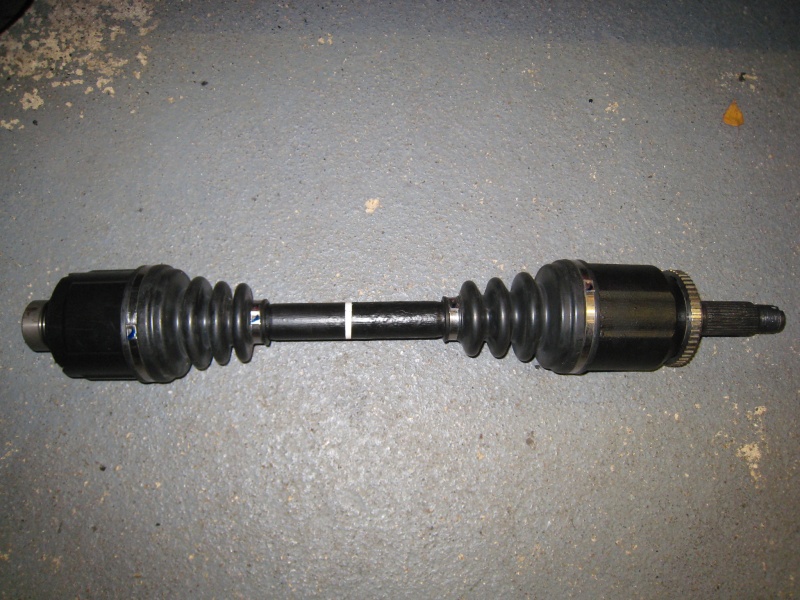

    Finished the re-built.

    Click image for larger version.

Name:	RHdriveshaft.JPG
Views:	122
Size:	228.4 KB
ID:	7923 Click image for larger version.

Name:	After01.JPG
Views:	128
Size:	191.3 KB
ID:	7924
    Click image for larger version.

Name:	After02.JPG
Views:	110
Size:	202.1 KB
ID:	7925 Click image for larger version.

Name:	After03.JPG
Views:	122
Size:	188.0 KB
ID:	7926

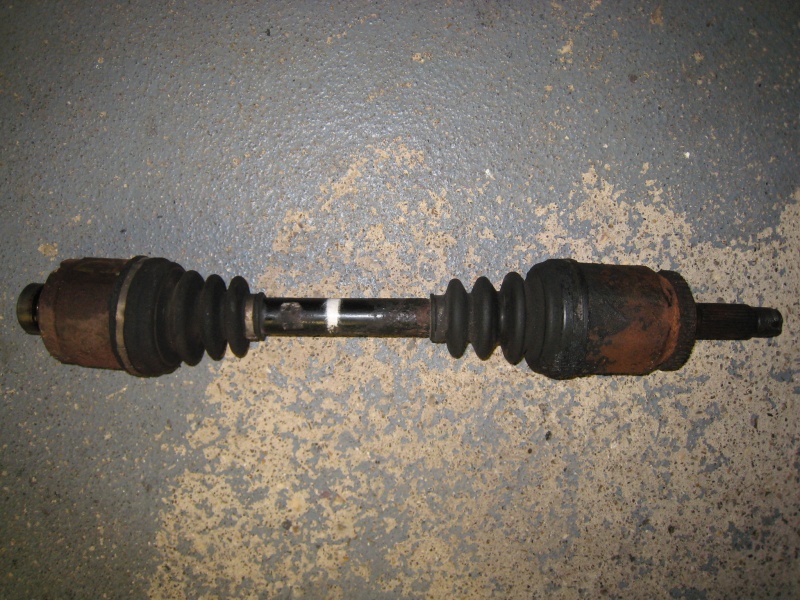

    So, something looked like this is now replaced with this one.


  4. #504
    Join Date
    Sep 2008
    Location
    Bucks, UK
    Posts
    2,003
    Blog Entries
    2439

    Default

    Click image for larger version.

Name:	CorrodedTriggerTeeth.JPG
Views:	120
Size:	208.5 KB
ID:	7927 Click image for larger version.

Name:	TriggerTeethAfter.JPG
Views:	126
Size:	114.0 KB
ID:	7928

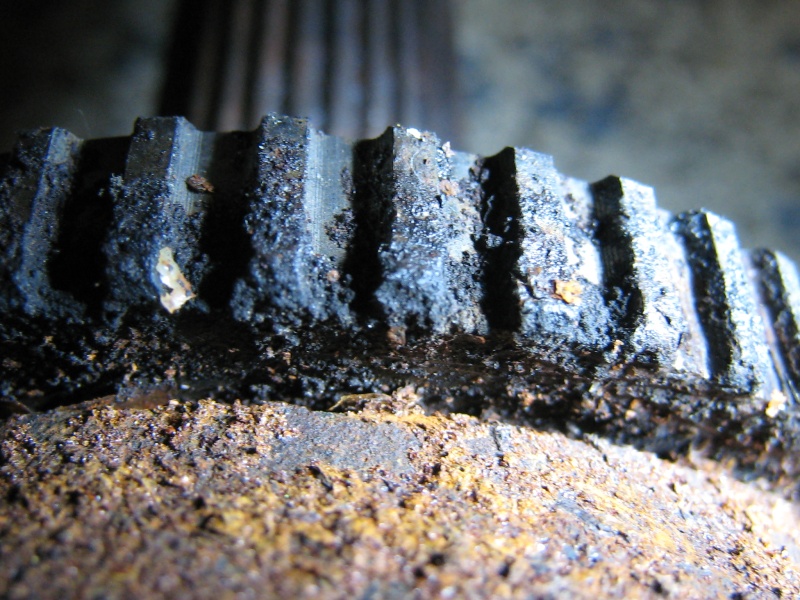

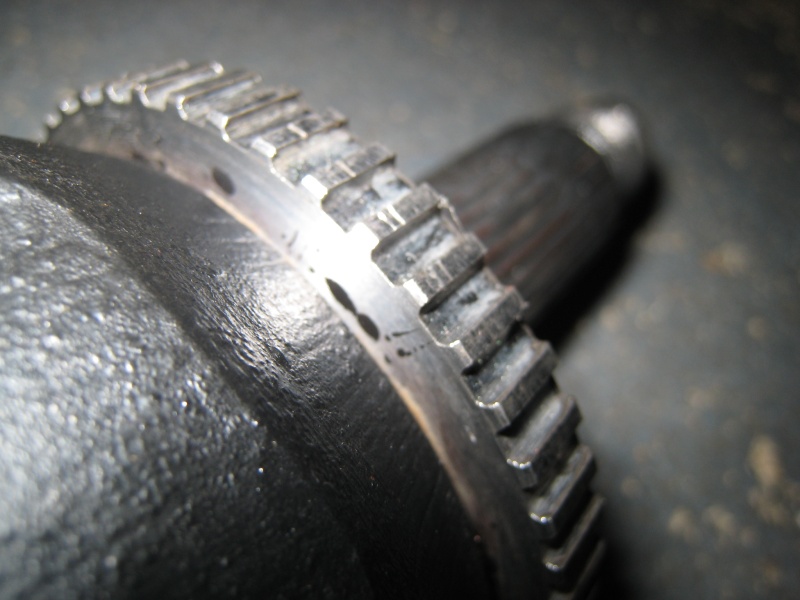

    The trigger teeth looks completely different now.

    Click image for larger version.

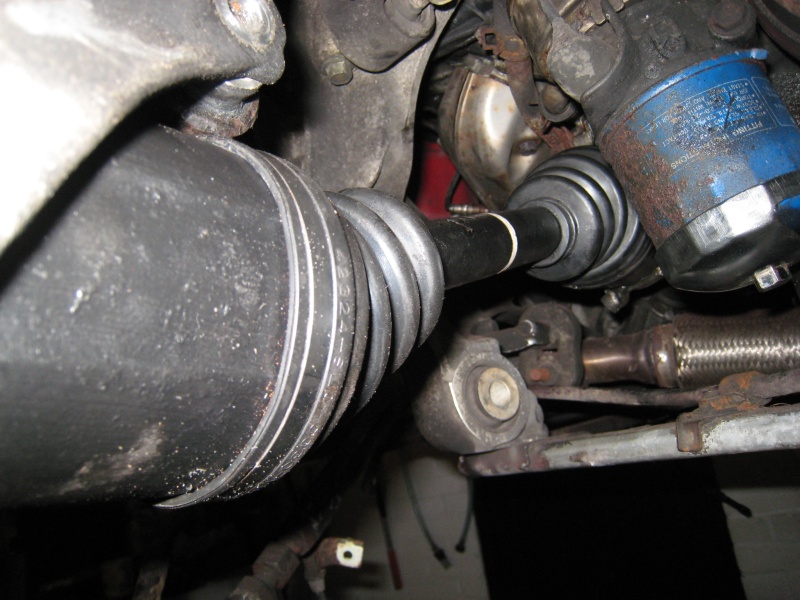

Name:	RightDRshaftInstalled.JPG
Views:	129
Size:	157.8 KB
ID:	7929
    Installed on the car.


    Finished cleaning the brake calliper and in the process of refurbishment service.

    Needs to push a lot as there are two NSXs waiting for the TB/WP services as well as full cooling system refresh. Some of the parts are already at my place…

    Doesn’t help having two F1 Grand Prix events back to back….

    More to follow.

    Kaz

  5. #505
    Join Date
    Sep 2008
    Location
    Bucks, UK
    Posts
    2,003
    Blog Entries
    2439

    Default

    Brake system refurbishment.

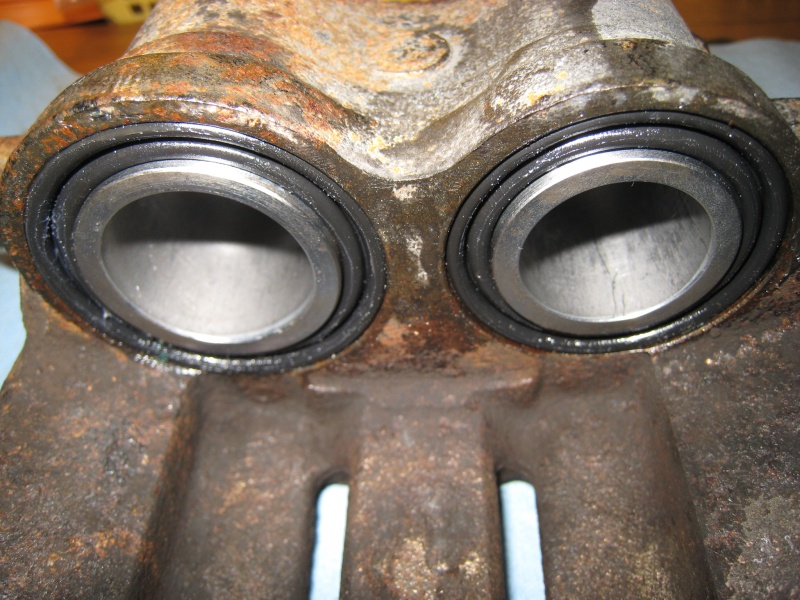

    While the outside of the calliper and bracket were very rusty, the internal wall was very clean.

    Although we could have soda blasted to clean/remove the rust and powder/paint coated the calliper/bracket, we decided not to do so as we felt it would be better to invest into the future upgrade of the calliper to the later spec.

    The surface of the calliper and bracket were cleaned as much as possible so that I can apply the specific material to the certain area. This will make big difference in preventing the rust from these areas until the next brake refresh service.

    Click image for larger version.

Name:	FrontOH.JPG
Views:	162
Size:	164.4 KB
ID:	7952 Click image for larger version.

Name:	FrontCheck01.JPG
Views:	173
Size:	193.8 KB
ID:	7953 Click image for larger version.

Name:	FrontCheck02.JPG
Views:	172
Size:	190.1 KB
ID:	7954

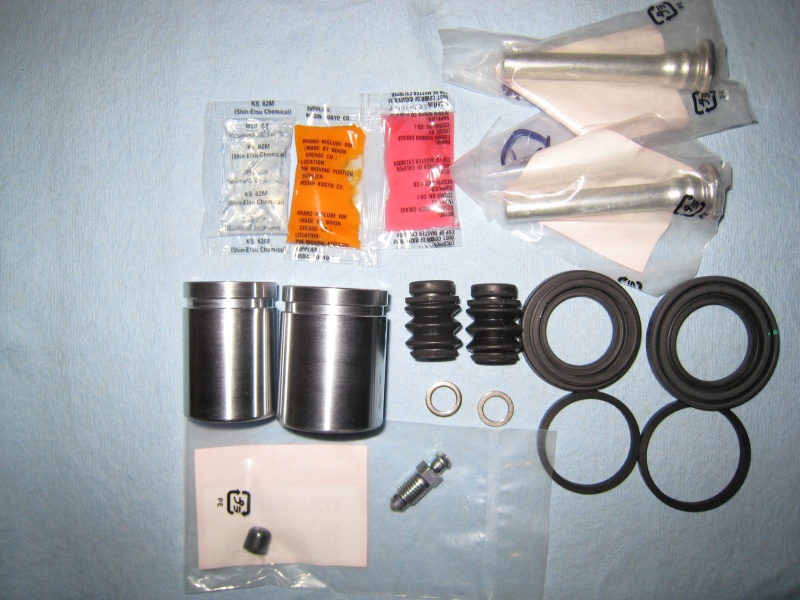

    Some of the parts for the Front side service. Double checking the installation by operating the pistons. Both pistons should move smoothly with the fingers.

  6. #506
    Join Date
    Sep 2008
    Location
    Bucks, UK
    Posts
    2,003
    Blog Entries
    2439

    Default

    Click image for larger version.

Name:	RearOH01.JPG
Views:	122
Size:	153.6 KB
ID:	7955 Click image for larger version.

Name:	RearOH02.JPG
Views:	121
Size:	146.7 KB
ID:	7956

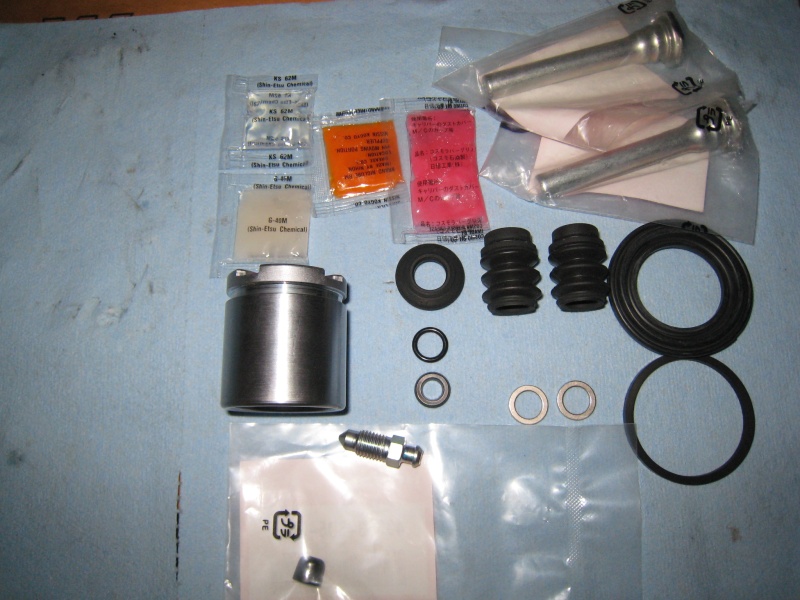

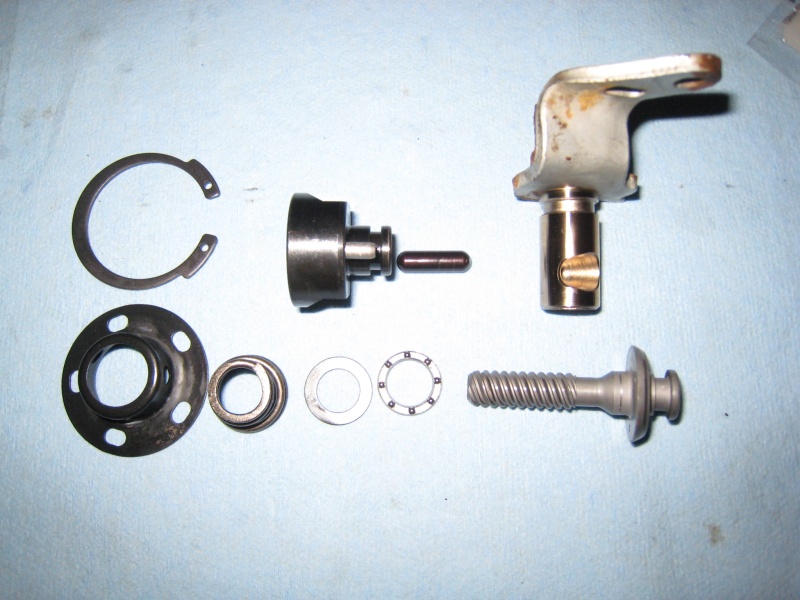

    Moving onto the Rear side. Some of the parts used for the service plus the parking brake mechanism. There are other parts inside the rear piston for this mechanism and we are going to use new piston so they will be replaced as well.

    Click image for larger version.

Name:	RearCheck01.JPG
Views:	114
Size:	162.7 KB
ID:	7957 Click image for larger version.

Name:	RearCheck02.JPG
Views:	117
Size:	143.4 KB
ID:	7958

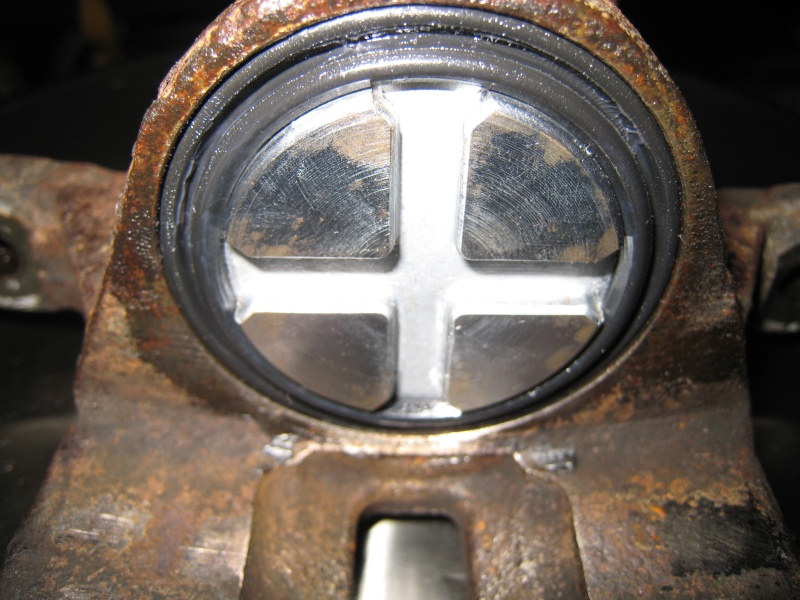

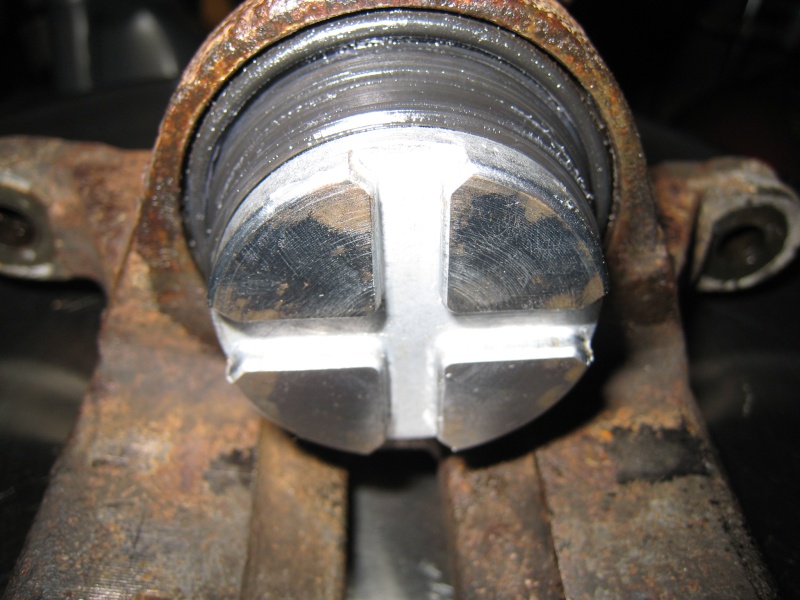

    Again, after the installation of the piston, it will be double checked by operating it. Important to set the groove of the piston at the right angle. Sometimes, I found the rear inner brake pad not operating properly due to the wrong angle.

  7. #507
    Join Date
    Sep 2008
    Location
    Bucks, UK
    Posts
    2,003
    Blog Entries
    2439

    Default

    Click image for larger version.

Name:	ReplacedSliderPin.JPG
Views:	136
Size:	159.5 KB
ID:	7959 Click image for larger version.

Name:	NewBleeder.JPG
Views:	122
Size:	153.5 KB
ID:	7960

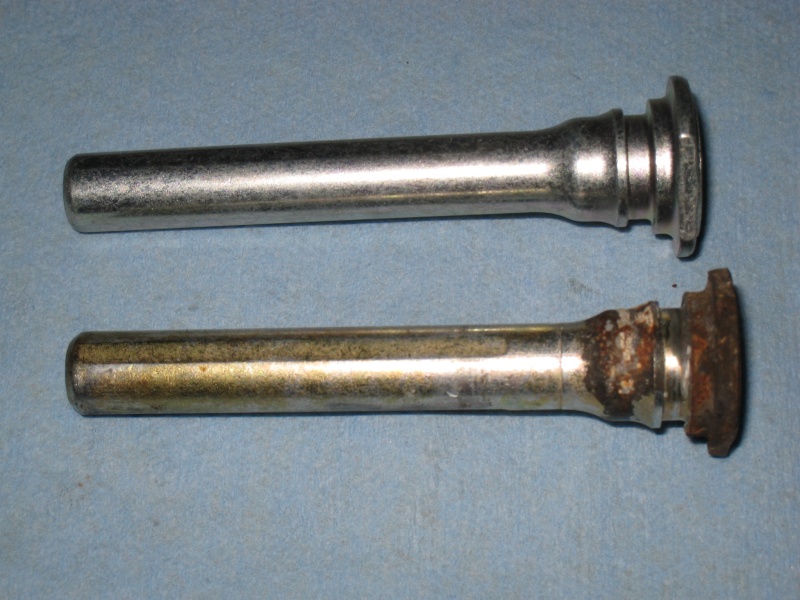

    I don’t think I can re-use this slider pin (the lower one in the photo) so replaced with the new one.

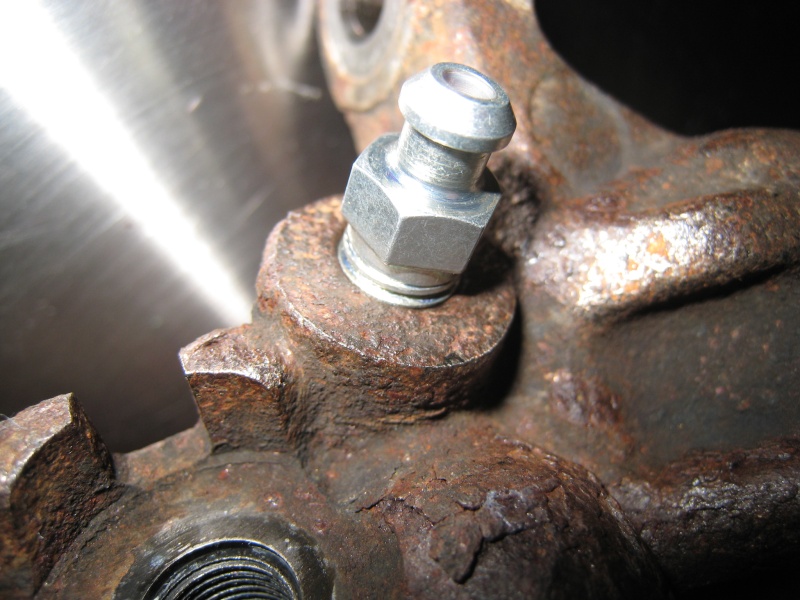

    All four callipers have new bleeder screw now.

    Click image for larger version.

Name:	Goodridge01.JPG
Views:	116
Size:	185.3 KB
ID:	7961 Click image for larger version.

Name:	Goodridge02.JPG
Views:	129
Size:	203.2 KB
ID:	7962
    Didn’t feel safe to re-use the old tired rubber brake hose so requested Goodridge to build specific length hose for us.

    The length is good for both original and later calliper spec and already tested on my NSX for many years using both type of callipers.
    So, when the owner is ready for the upgrade, he doesn’t need to replace the brake hose again especially at the rear side.

    Also, we decided not to replace the corroded brake pipes
    as we are going to replace them especially the Front ones during the ABS upgrade process in the near future.

    It was very tricky to install the new hoses as the flair nut was completely seized to the pipe and thus, I had to rotate the hose side first, torque it to the spec without causing any kink when connecting to the calliper.


    Still needs to finish the installation of the rear right wheel speed sensor, refresh of brake master cyl, torque the suspension bolts/nuts under 1G, ABS flush, replace Main Relay, replace engine oil & filter and service the Bose AMPs.

    Aiming to return this NSX to the owner very soon and start working on two more NSXs. Both will go through the TB/WP/Valve clearance + cooling system service.

    It’s going to be fun replacing more than 20 coolant hoses when it is cold…

    More to follow.


    Kaz

  8. #508
    Join Date
    Sep 2008
    Location
    Bucks, UK
    Posts
    2,003
    Blog Entries
    2439

    Default

    Click image for larger version.

Name:	RRcalliperInstalled.JPG
Views:	119
Size:	172.0 KB
ID:	7963

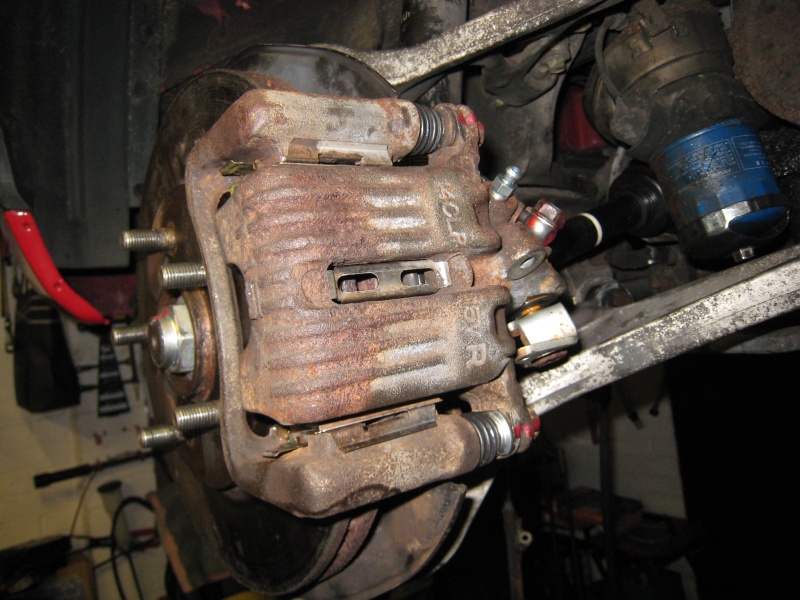

    Additional photos from rear calliper installation.

    Click image for larger version.

Name:	RearBrakeHose01.JPG
Views:	131
Size:	170.4 KB
ID:	7964 Click image for larger version.

Name:	RearBrakeHose02.JPG
Views:	123
Size:	202.7 KB
ID:	7965 Click image for larger version.

Name:	BrakeHoseTorqued.JPG
Views:	132
Size:	156.4 KB
ID:	7966

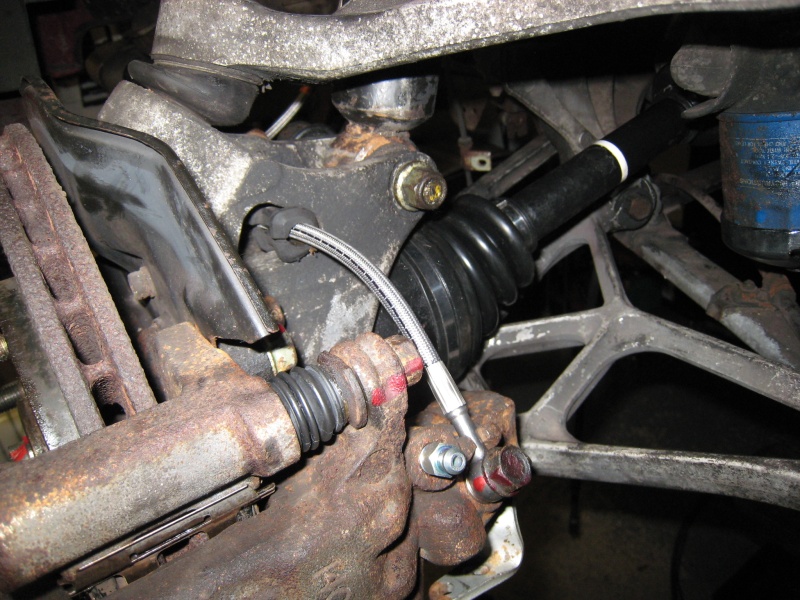

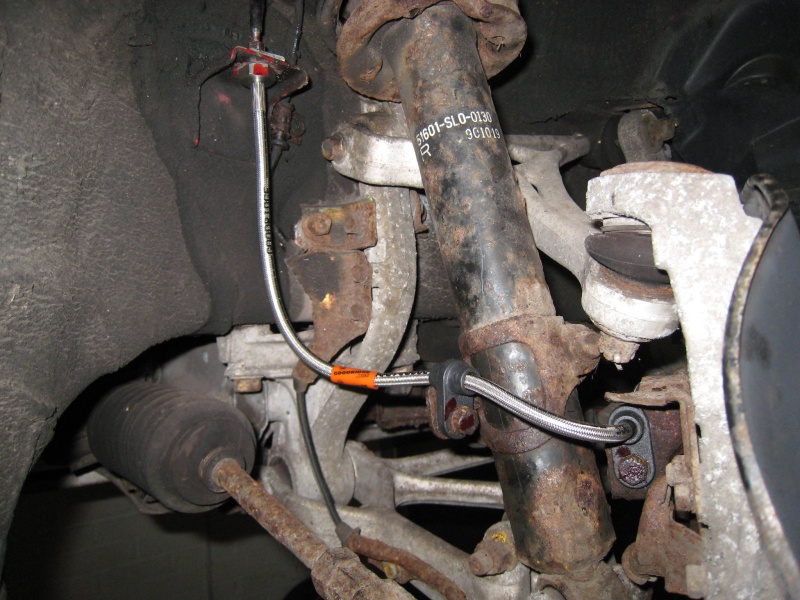

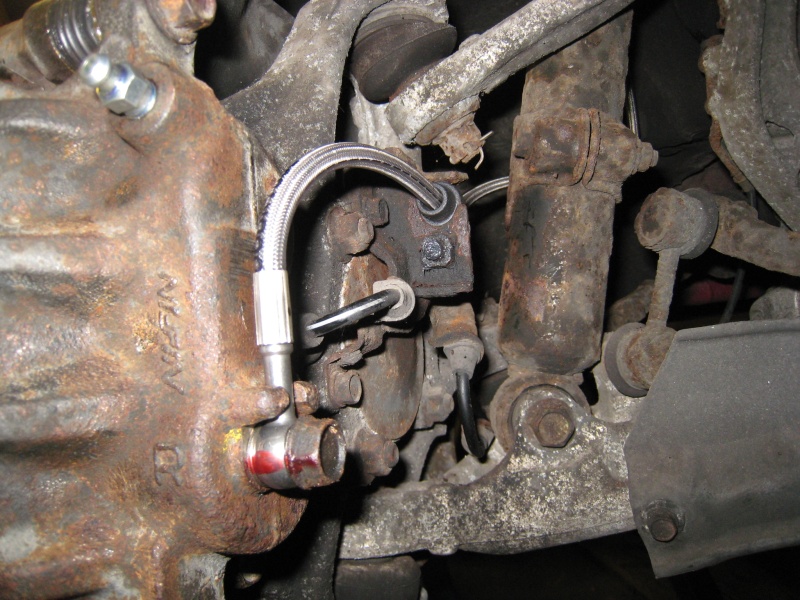

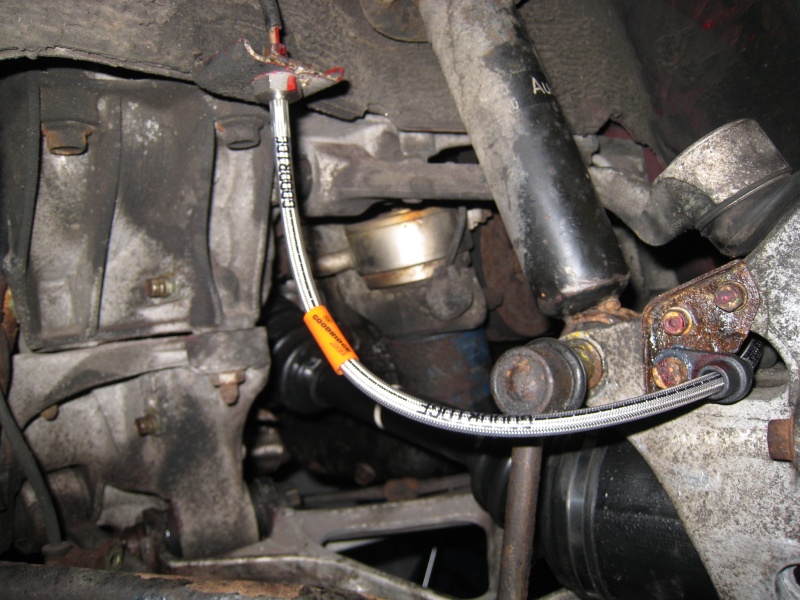

    New rear brake hose installed.
    Brake pipe and hose torqued to the spec using digital torque wrench.

  9. #509
    Join Date
    Sep 2008
    Location
    Bucks, UK
    Posts
    2,003
    Blog Entries
    2439

    Default

    Click image for larger version.

Name:	DRshaftSpindleNut.JPG
Views:	123
Size:	200.7 KB
ID:	7967 Click image for larger version.

Name:	RRspeedSensor.JPG
Views:	126
Size:	189.3 KB
ID:	7968 Click image for larger version.

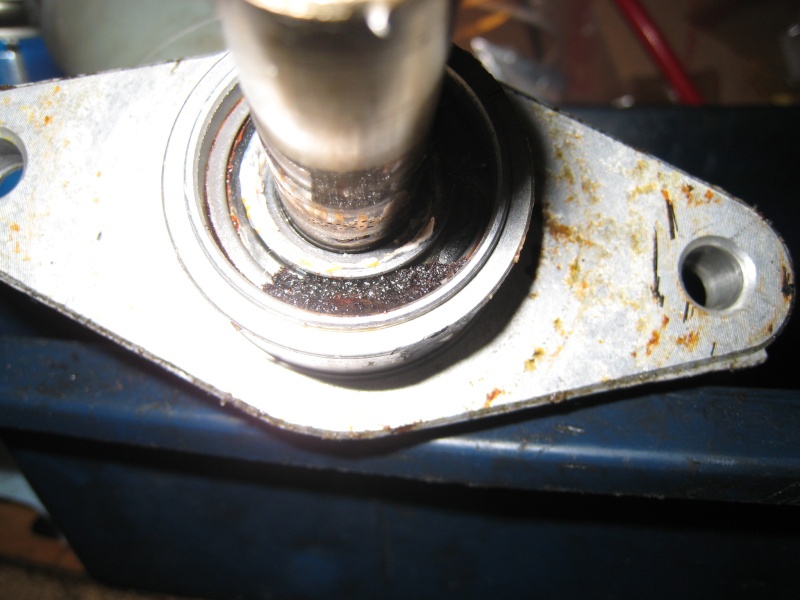

Name:	DRshaftLHtransSeal.JPG
Views:	117
Size:	167.0 KB
ID:	7969

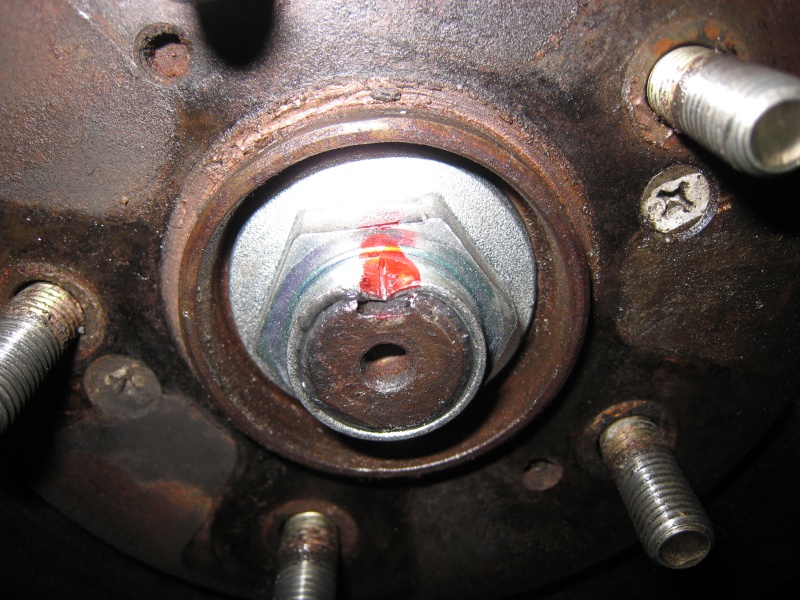

    RH drive shaft spindle nut torqued to the spec.

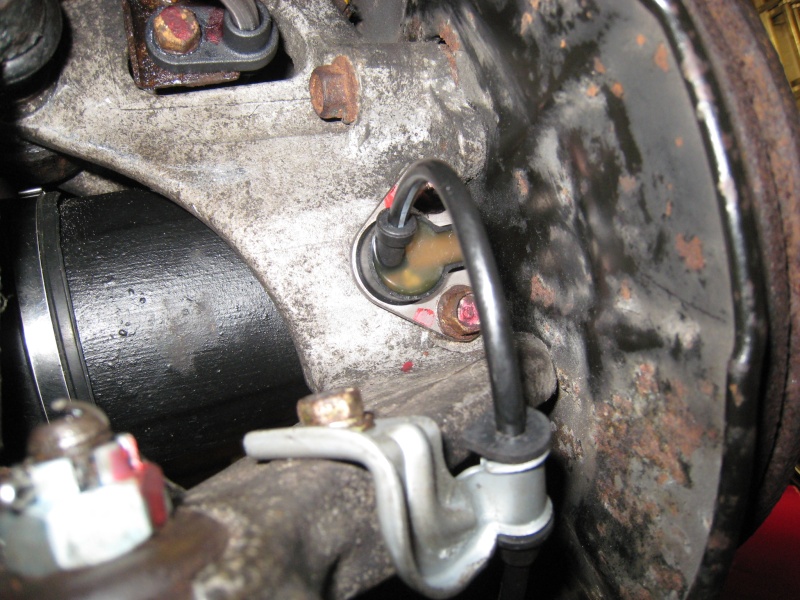

    New RR wheel speed sensor installed.
    Honda discontinued this speed sensor for earlier models for RR side so you can only get hold of the later spec one.
    You will need to modify the angle of one of the cable bracket before the installation.

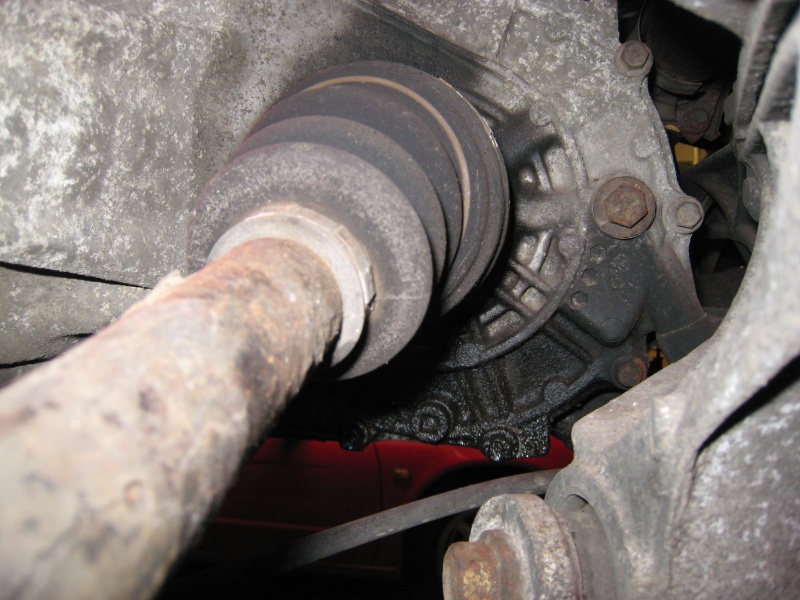

    When we are ready to work on the LH drive shaft, we will need to replace the trans case seal. It’s already leaking and in fact, I replaced it for another owner several months ago.

    Push, push. I must finish this NSX very soon....

    Kaz

  10. #510
    Join Date
    Sep 2008
    Location
    Bucks, UK
    Posts
    2,003
    Blog Entries
    2439

    Default

    Overhaul (OH) of Brake Master Cyl.

    Click image for larger version.

Name:	Residue.JPG
Views:	122
Size:	89.2 KB
ID:	7973 Click image for larger version.

Name:	BRmasterCylBefore.JPG
Views:	118
Size:	121.9 KB
ID:	7970

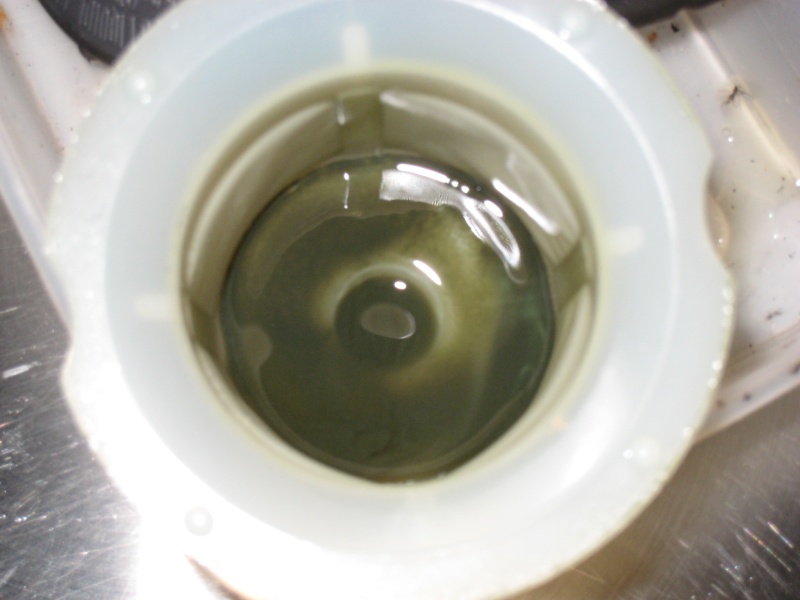

    Lots of residue was trapped at the filter so looked like the master cyl was not serviced for many years.

    In fact, at the base behind the master cyl, it was leaking but as the leaked brake fluid stripped the black paint off the brake booster surface, the debris was blocking the seeping hole and hiding the issue.


    Click image for larger version.

Name:	BRmasterCylOHkt.JPG
Views:	124
Size:	137.9 KB
ID:	7971

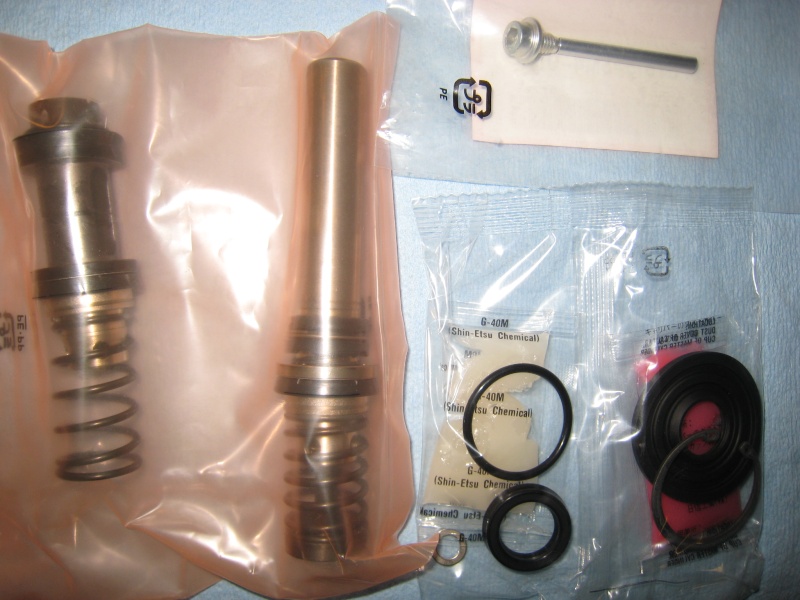

    Master Cyl OH kit. Sometimes, it is quicker to replace the entire cyl as an assembly including the reservoir but this one was not too bad and saved the cost by overhauling it than replacing.

    English manual states as ‘d
    o not try to disassemble the master cylinder assembly. Replace the master cylinder assembly with a new part if necessary’ and thus, no instruction on how to OH it.
    In Japan, we used to be forced to OH it every 2 – 3 years by law so there is a specific manual in Japanese.


    Click image for larger version.

Name:	PushrodCheck.JPG
Views:	128
Size:	191.6 KB
ID:	7974

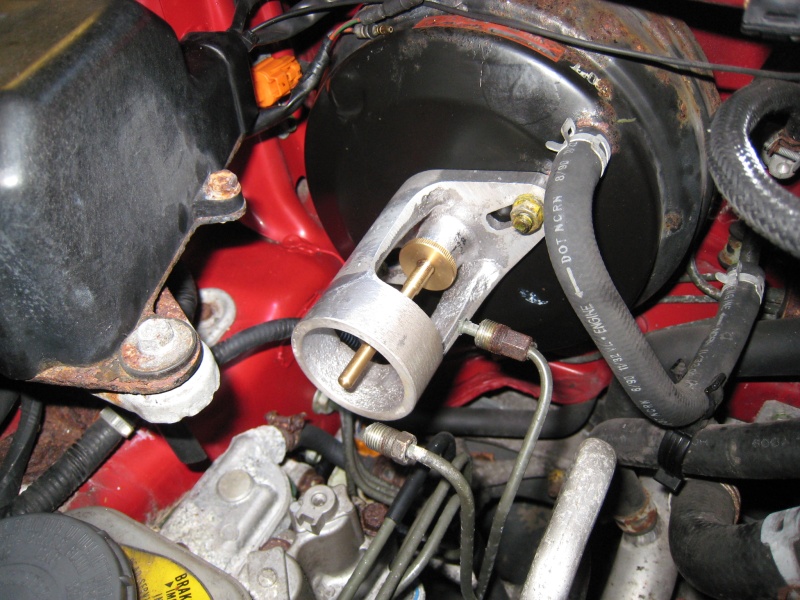

    Once overhauled, we need to double check the pushrod clearance. Although it is very unusual to adjust it, I have no idea whether someone touched it in the past or not so always check it.
