Great work Kaz!
Noticed however that the front Goodridge hoses you have, only have 1 line locator on the front hoses? The hoses I have purchased have 2 locators as per the OEM hoses.
Printable View

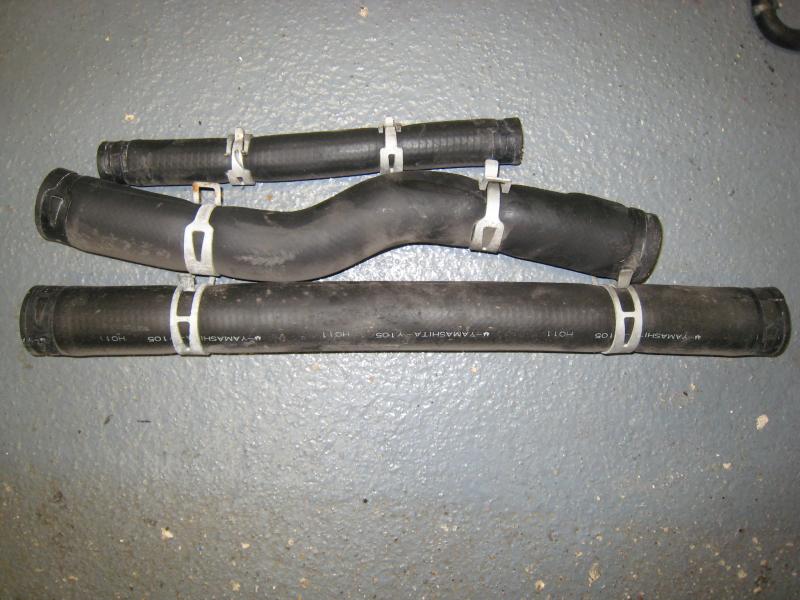

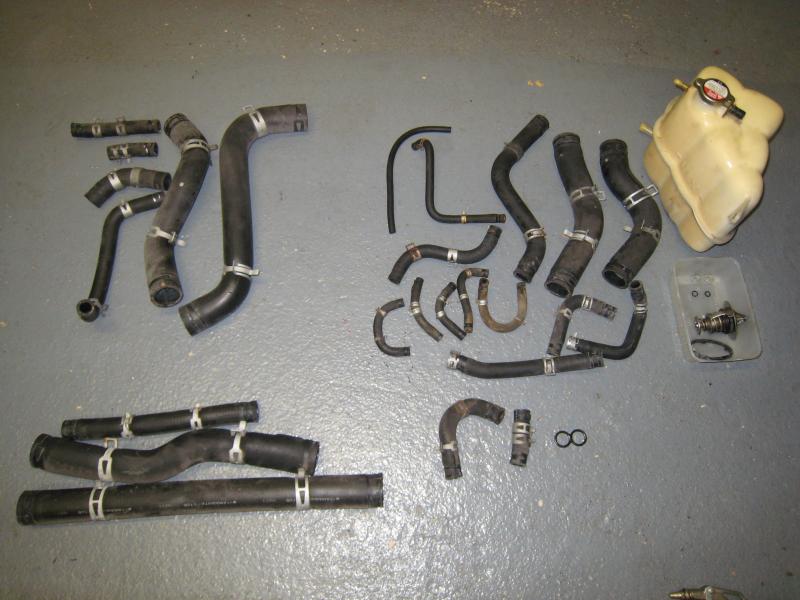

These are the parts replaced.
Attachment 6291

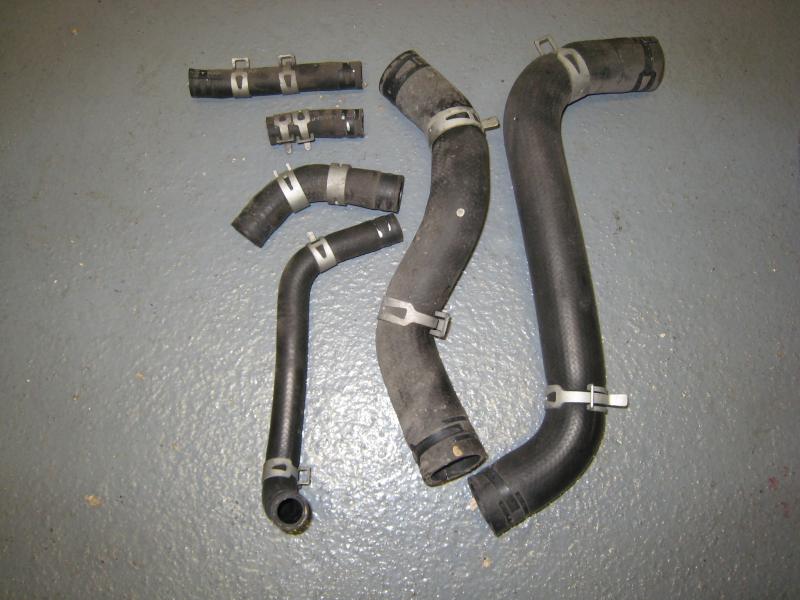

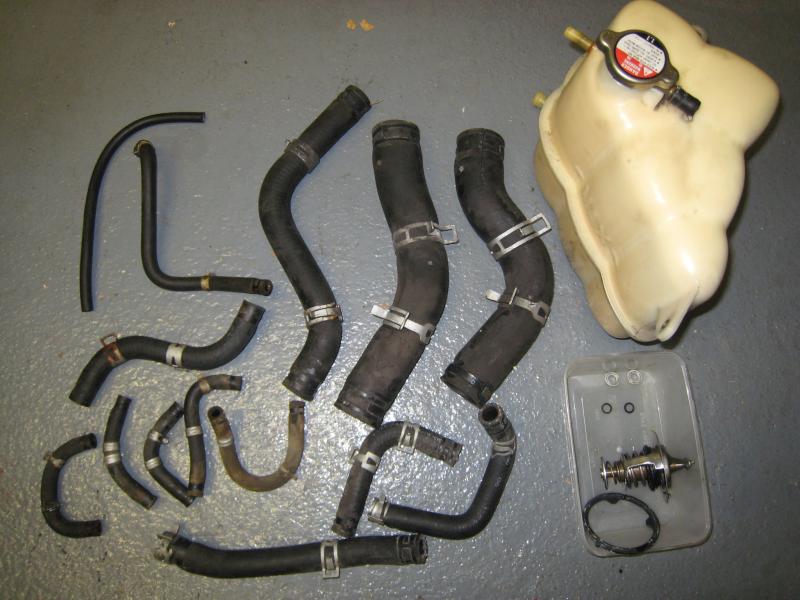

The ones in the Engine Room, at the Centre floor and at the Front under bonnet.
Attachment 6294 Attachment 6292 Attachment 6295

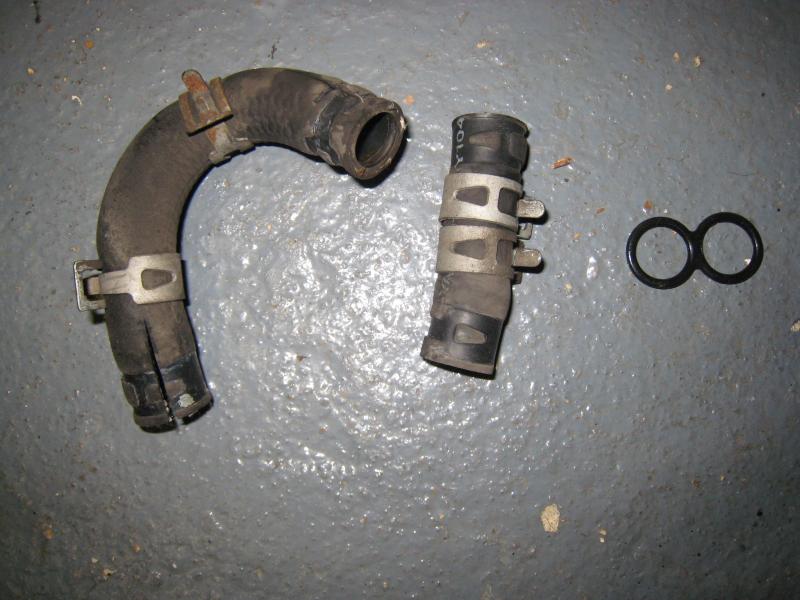

The ones at the Engine Oil Cooler with Figure of ' 8 ' O-ring.
Attachment 6293
Even after carrying out the same service for many times, it still takes 1 - 2Hr just for these 2 hoses.... Seriously...
I'm glad that we replaced all the hoses especially these two. Previously, this NSX had driveshaft grease leakage and lots of grese were covering this short hose. Because of this and with the heat from header, it was already expanded/de-formed and about to burst.

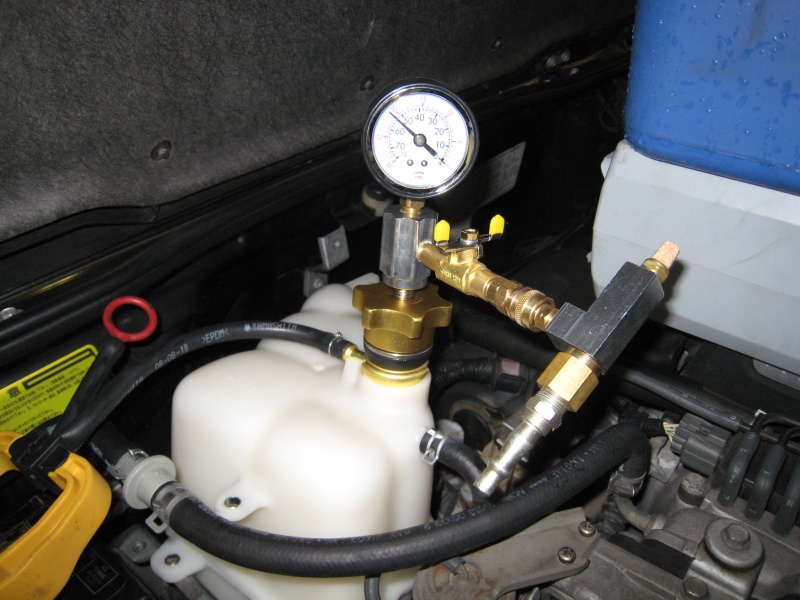

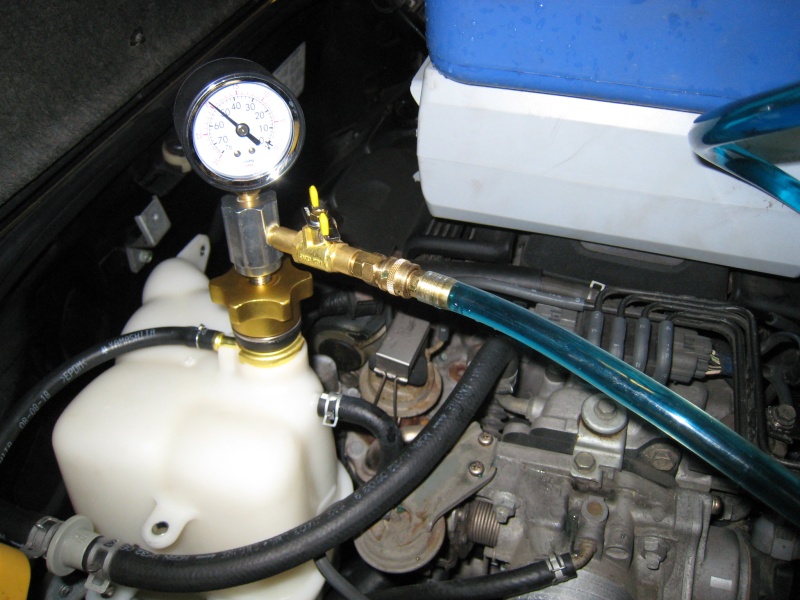

As always, vacuum filled and leak tested the entire system.
Attachment 6298 Attachment 6297 Attachment 6296
Now the coolant system warms up properly and all the hoses will be fine for many years.
8. A/C Evaporator
As in my old post, our NSX doesn't have any pollen filter. So, anything managed (it's quite easy to do so) to get inside the blower fan motor unit, it will be directed to the surface fin of A/C evaporator unit.
And if you haven't washed it for many years, it will look like this....

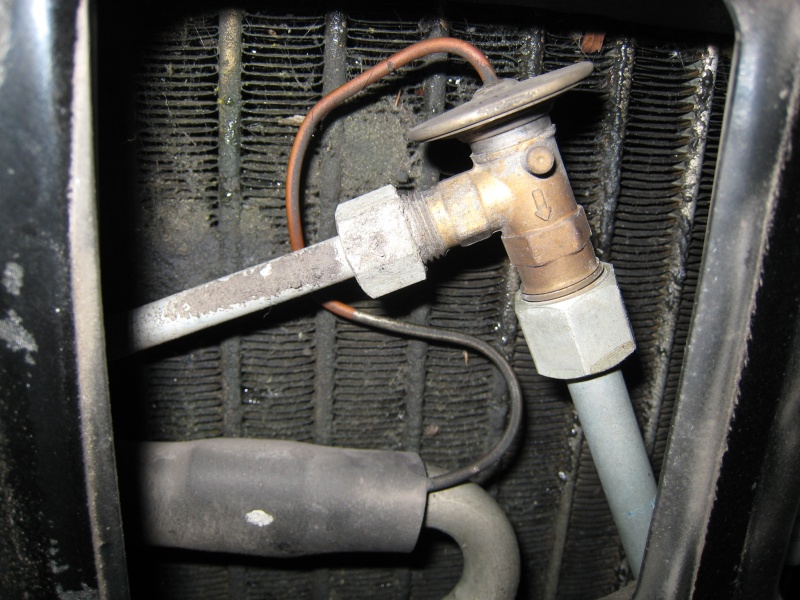

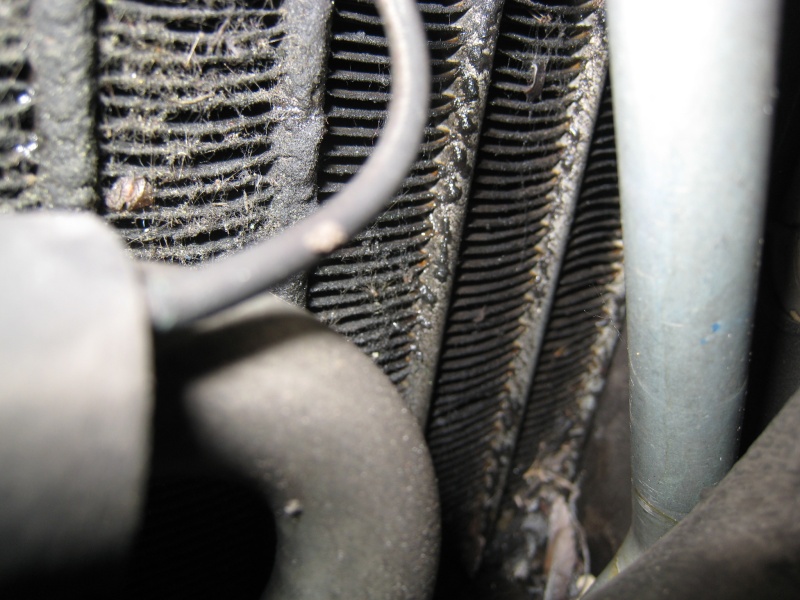

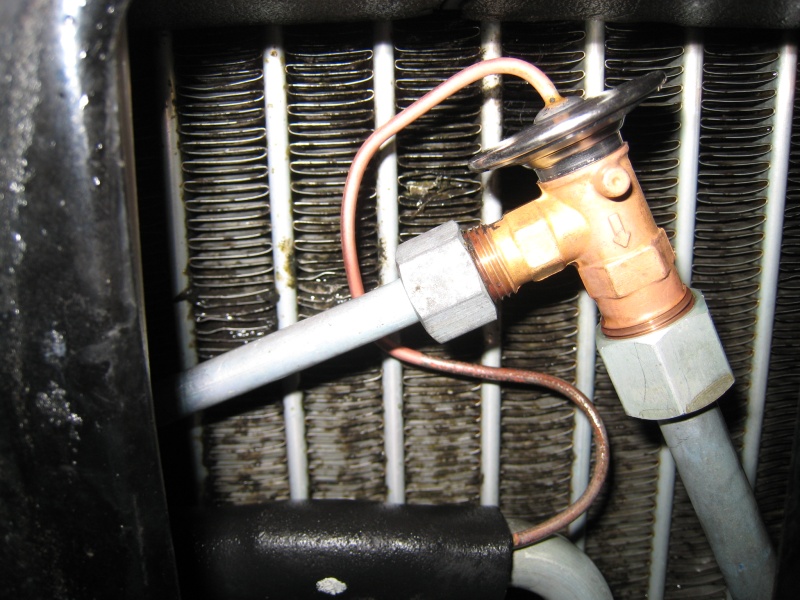

Attachment 6299 Attachment 6300
I'm afraid this is what you are breathing while you are inside the cabin....
I can't see those two o-rings for the radiator in your pics. Those are very critical as if the NSX looses pressure in the coolant system then it's at those two, even without having a leak.;)
So, once a year, take off your blower motor unit and wash it gently with special chemical designed for aluminium. Be careful with the aluminium surface fin as they are so fragile. I always use soft brush for cleaning.

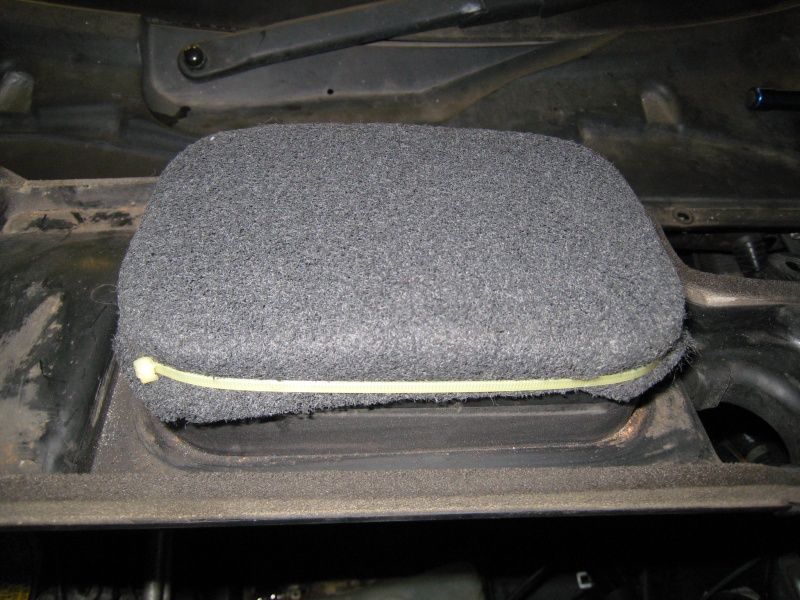

At the same time, consider making a simple DIY filter at the inlet of blower motor fan. Be careful not to reduce too much air entering the unit to avoid any damages as well as pay extra attention to prevent the filter from absorbing any water in contact.
Now, the evaporator is in much better condition and the uncomfortable smell is gone.
Attachment 6302 Attachment 6301
9. Rear Fog Light Circuit
As mentioned, this NSX is JDM so it has different tail light arrangement compared to UK model and JDM doesn't have factory fitted Rear Fog Light.
Because of this, you need to somehow install the Rear Fog Light.
Unfortunately, the people worked on this NSX carried out not great job and used one of the brake light on each Left and Right Tail lights.

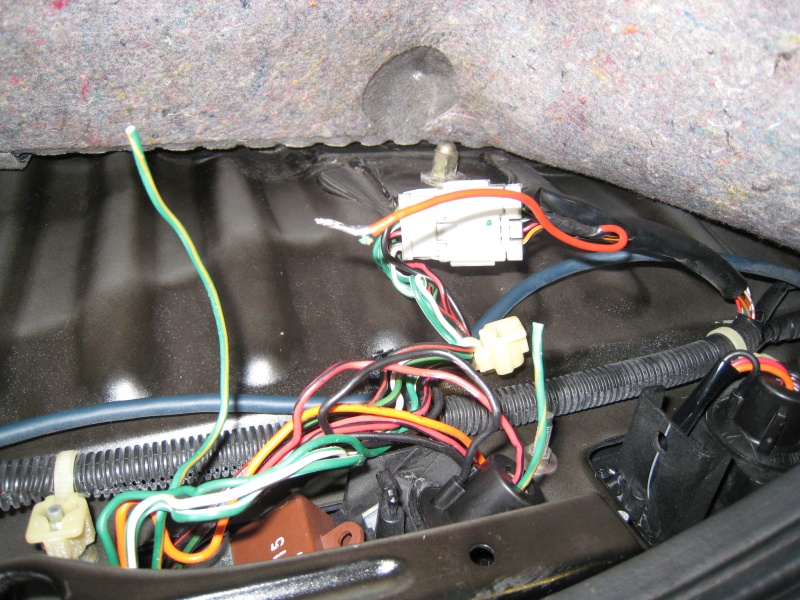

Attachment 6303
Obviously, this will trigger the 'BRKAE LAMP' warning indicator on the dash and they used black tape to hide it... What a great work....
I was so scared to see the modification on the wiring so first put them back as much as possible to the OEM level and then created the new circuit for the Rear Fog Light.

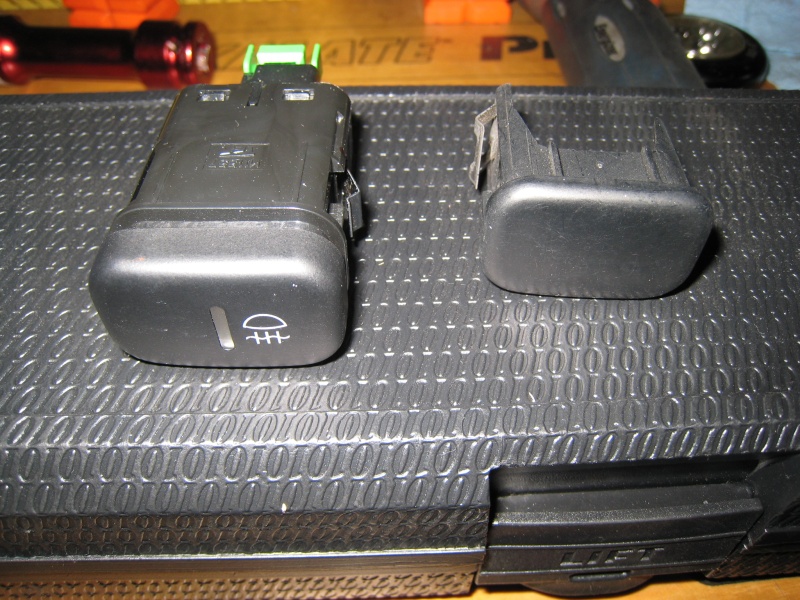

The OEM Switch and the Connector from my precious spare.

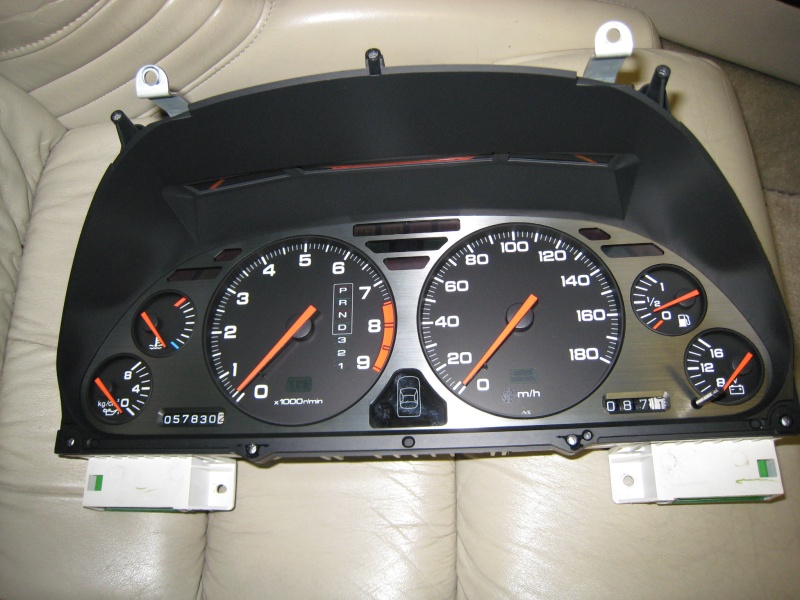

And finally, removed the dirty black tape hiding the warning light.
Attachment 6304 Attachment 6305
Now there is no more warning light and the owner will be happy to know that the wiring is back to how it should be.
Took long days to work on this NSX but I'm happy with the result.
Another NSX restored and tailored to the owner's demand.
Happy driving :)
Kaz
Hi, goldnsx.
If you look at the plastic tray just below the header tank in the photo of post #112, they are in there.
Also, sometimes, I don't have time to take photo of all the parts so you may find something missing but it is covered in my Service Log document that will be handed to the owner with the photo CD so I hope the owner is happy with them.
Thank you for sharing your advice any way as it will help others which is the aim of my post.
Kaz
Hi, Sudesh.
Yes, I noticed it and it was the same for the two complete set that I bought at the same time from Goodridge (not from ebay...).
However, I don't need the 2nd bracket for the Front as both NSX were equipped with aftermarket dampers without OEM bracket any way so had to use high temp heavy duty tyrap.
Kaz
While I was going through the backup of photos, I found the ones from the day I became the owner of the 94 NSX. It was just like looking at the origin of my Health Check service....
Although I was working very close to NSX, my actual ownership didn’t start until 94.
So, one hot summer day of year 1994 in Japan, after long waiting time, I went to pick up my NSX from one of the best Honda dealership in Tokyo.
I asked the sales executives to put my car on the lift before my arrival. They were not surprised about this request as they knew about my background.
Attachment 6319 Attachment 6320 Attachment 6321

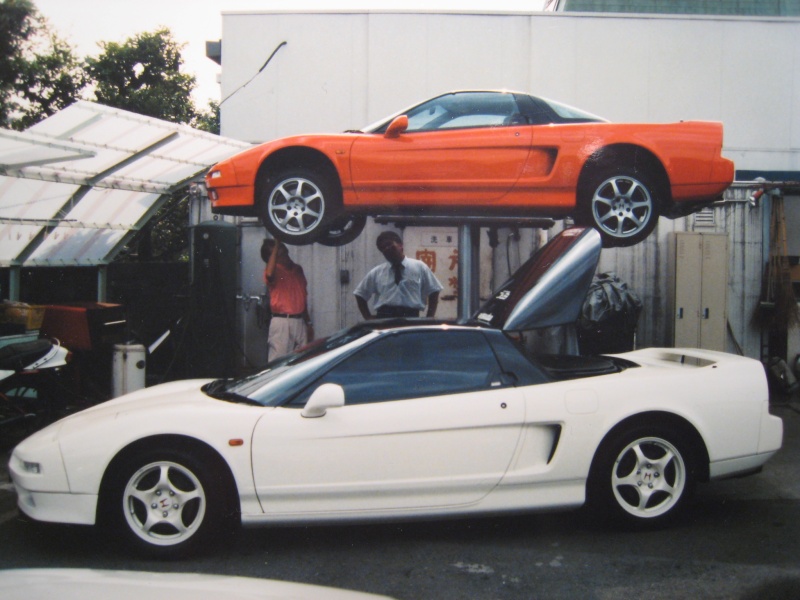

Me and the sales executive under my 94 Red NSX. The white NSX in front. It's the NA1 Type-R that I looked after and drove from time to time for my friend.
From different angle…
Beautiful front section when just arrived from the factory.
Attachment 6322 Attachment 6323

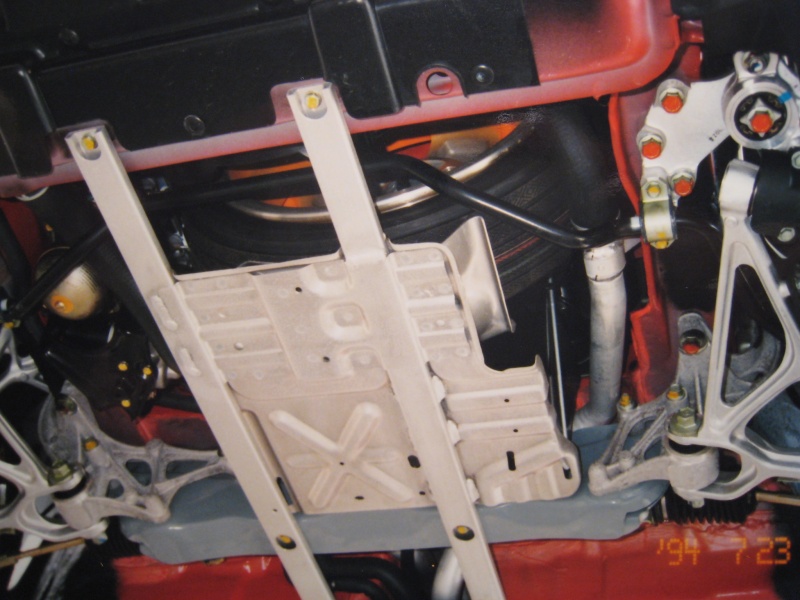

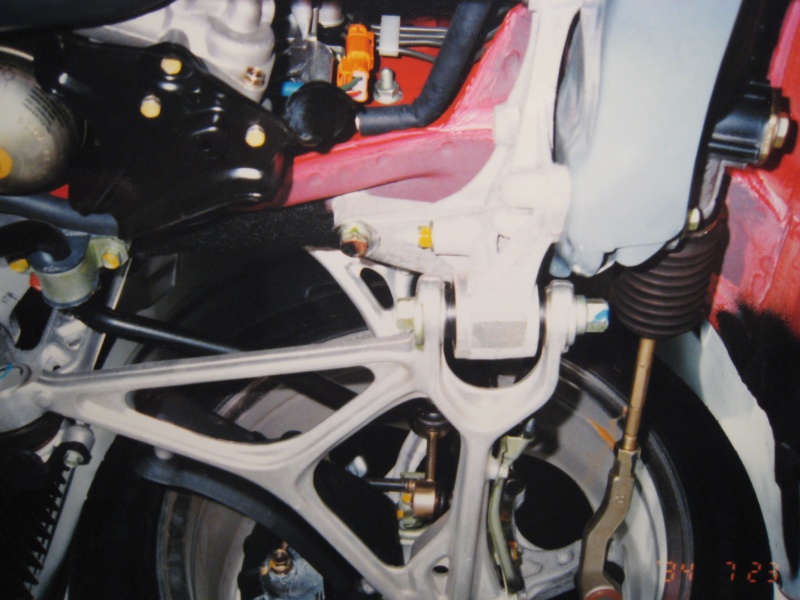

Front suspension area.
I almost forgot about how clean it was around the CAT when it was new….
After spending more than 15 years with about 125,000miles, I still enjoy driving it everyday.
Kaz
must have been the same outfit that did mine! i spent ages wondering if i actually had a brake lamp warning light!Quote:
Unfortunately, the people worked on this NSX carried out not great job and used one of the brake light on each Left and Right Tail lights.
http://www.nsxcb.co.uk/testvb/attach...1&d=1255905044
Obviously, this will trigger the 'BRKAE LAMP' warning indicator on the dash and they used black tape to hide it... What a great work....
I rewired mine to to have a fog lamp switch firing a change over relay to turn on the inner brake lamps..
the brake warning light comes on when the fog lights are on, and brakes are applied, which helps as a dash board reminder to turn off the fog lights when appropriate! brake warning lamp resets when the ignition is switched off.
Hi, all.
I was so busy over the past few weeks with my own business + helping many NSX owners.
Attachment 6329 Attachment 6328 Attachment 6332

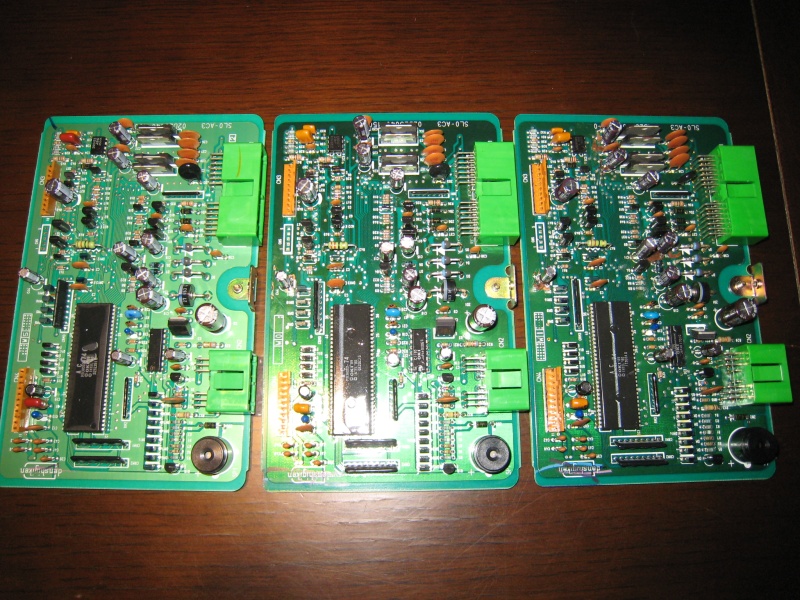

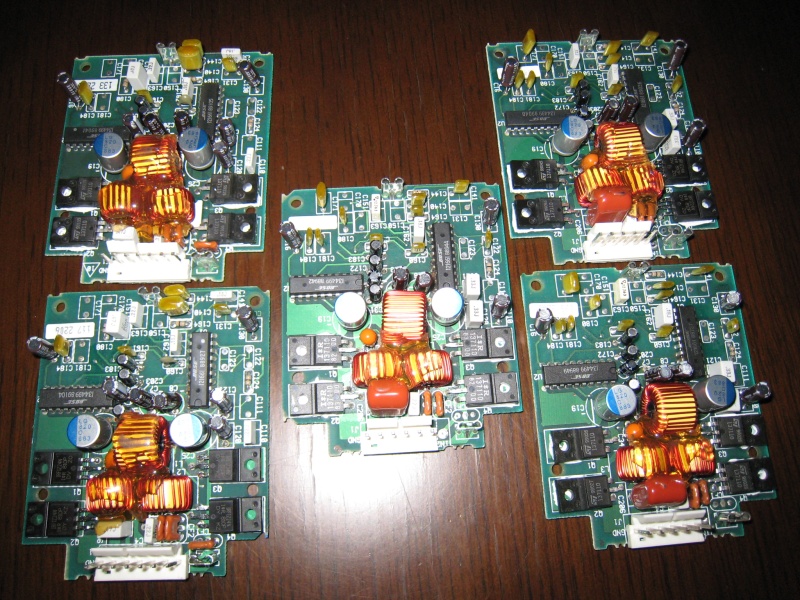

Was working on several A/C CCU boards and one of them was really in bad condition. At the end, I used 6 hard wires, 2 jumper wires and 2 soldering bridge.
At the same time, I was working on many Bose Speaker Amps. Lots of capacitors were leaking and some of the damages were enough to cause issues to the Bose in-house ICs…
Addition to these, I was working on Power Steering EPS computer. I’m glad that I managed to fix the issue and for the first time since the owner bought this particular NSX, he managed to drive it with EPS working.
I’ll post the detail in different thread as it was quite interesting story.
Attachment 6333 Attachment 6330
And then, I was helping one of the owner for the Coolant system and Main Relay.
The owner had the coolant system serviced just about 1 month before my Health Check Service but already the coolant level was at the Low level. Also, there was a question mark on the amount of coolant used on the receipt.
So, the owner came back to my place and had the coolant system completely refurbished.

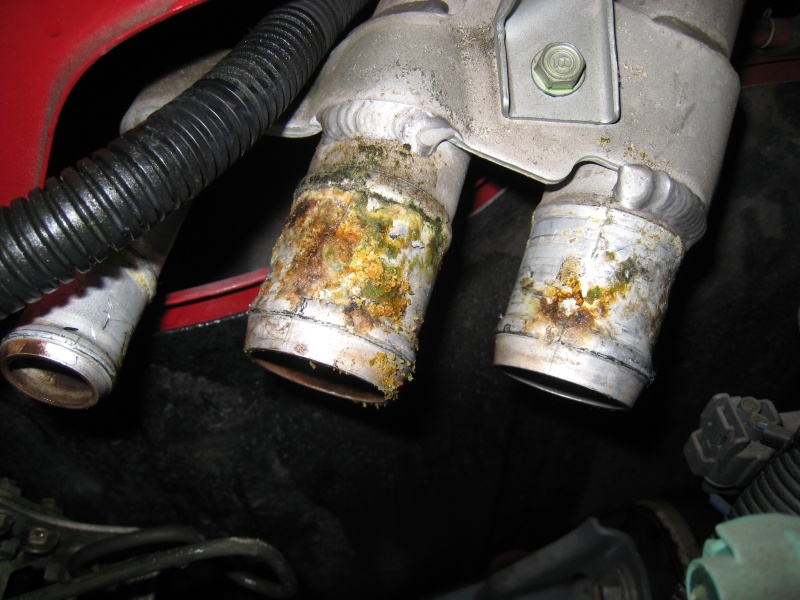

There were significant corrosion at the pipes under the header tank and the coolant was slowly leaking from there. I'm glad we repalced all hoses this time.
If you left your coolant hoses for a long time without replacing them, best to check the ones under the header tank, the short one at the Oil Cooler and the ones in the channel of bottom centre floor.

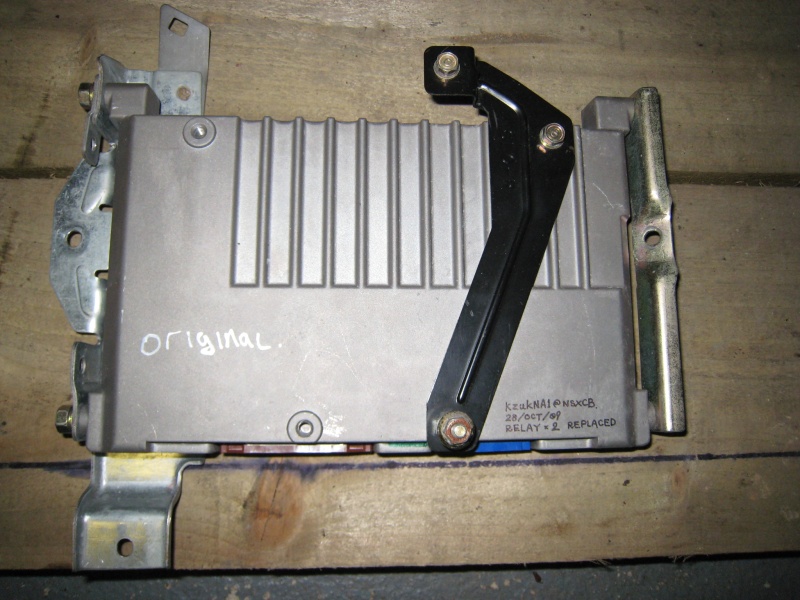

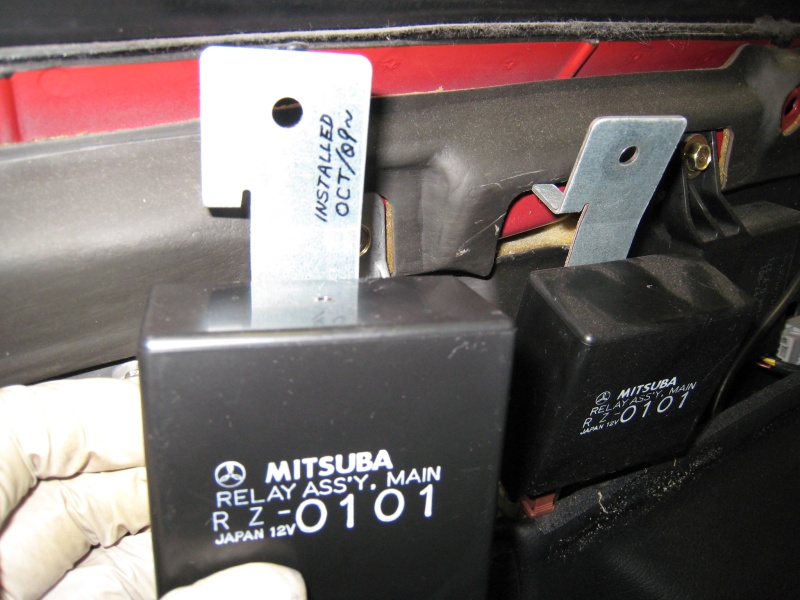

The famous Main Relay. Just replace it at your earliest opportunity and keep the original one as an emergency spare after resoldering it.
I'm waiting for many parts from Japan and US so I hope I can catch up with all the backlog very soon and help other owners.
Regards,
Kaz
