Bose Speaker Amplifier

Hi, all.

From time to time, I was asked to look into the audio system as the owners wanted to upgrade or modify the system using aftermarket parts.
Also, there were several requests to repair the famous Bose Speaker Amplifiers as the capacitors used on them will start to leak sooner or later. It’s the same issue as on the A/C Climate Control Unit (CCU) as seen on my other post ‘CCU Computer board Service’.

The owner sent one of his amplifier to investigate his audio system status.
Attachment 5799

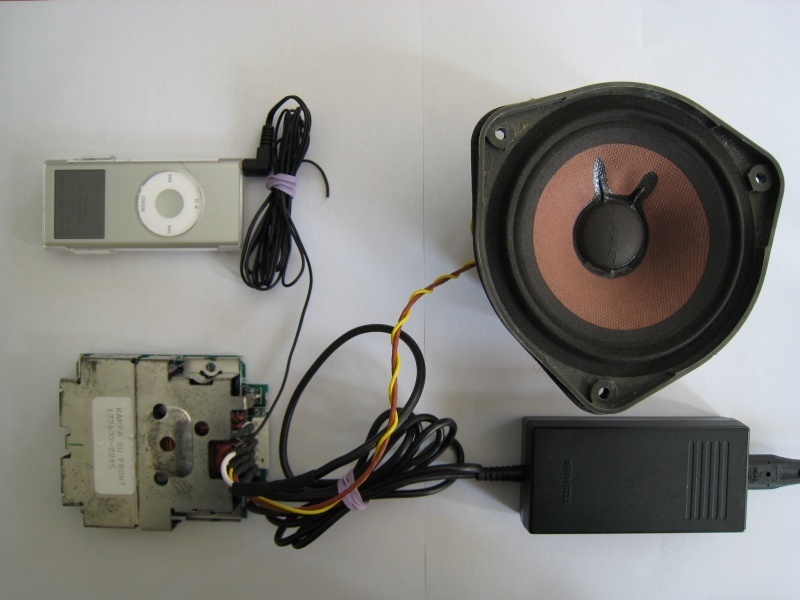

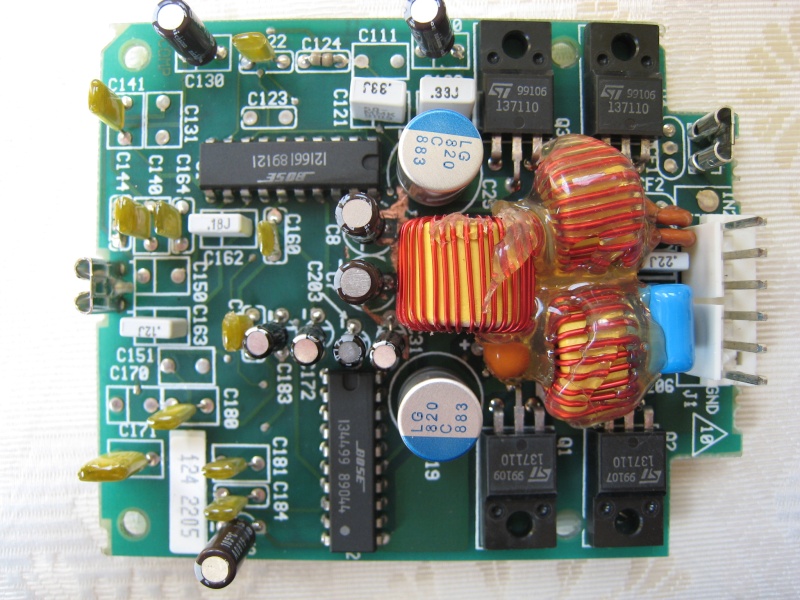

On the bench system, it sounded fine but as in the past, you never know the real status until you open it up...
Attachment 5798

By the way, I would like to say big thank you to the members - Jim (mutley) and Andy (328) for their contribution to the parts for my bench system :thumbsup:.

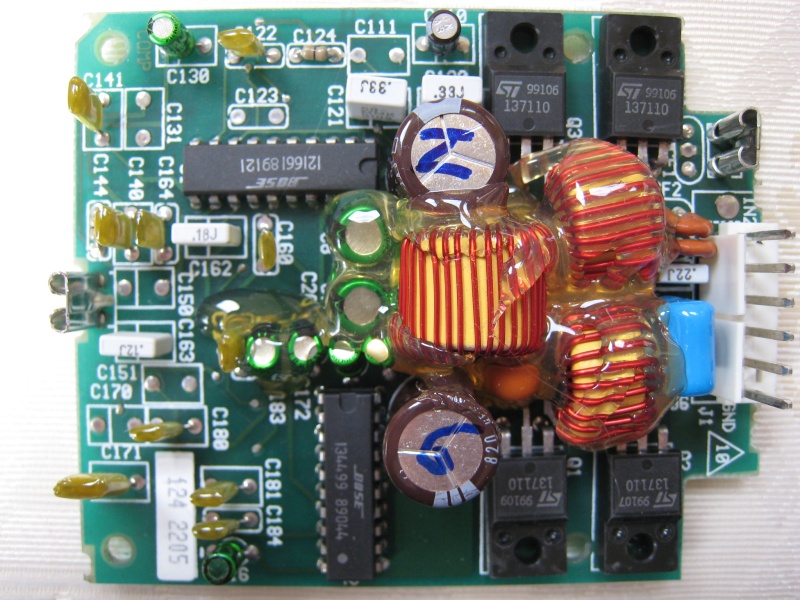

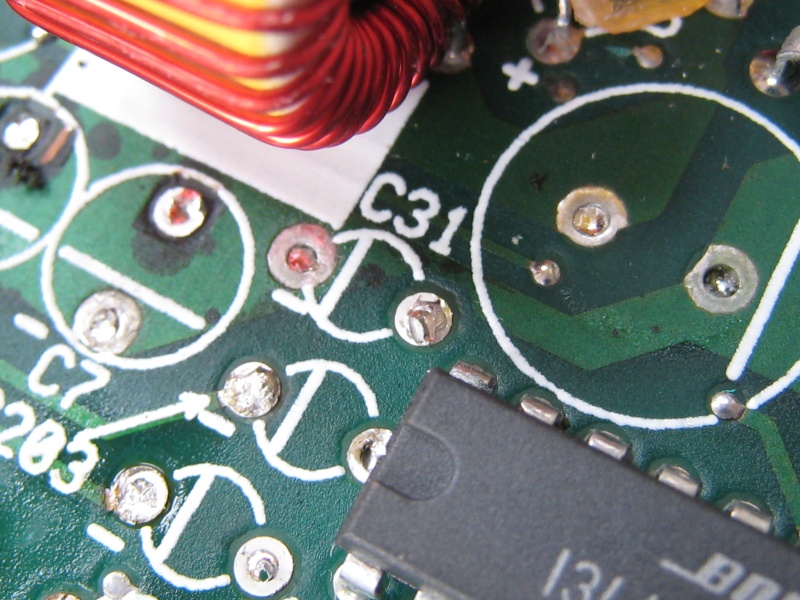

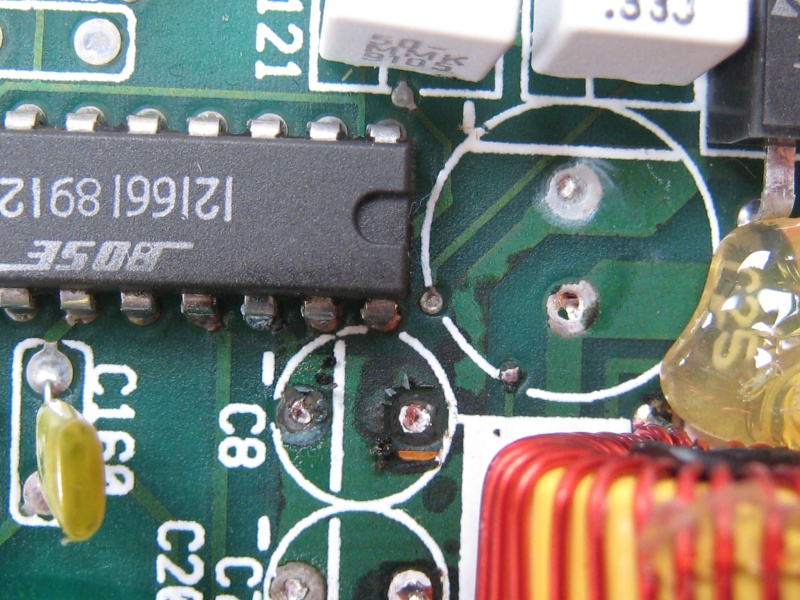

So, I started to remove the capacitors and this is what I found.
Attachment 5800 Attachment 5801

Even it sounded fine on the bench, the damage was already there… The owner was very lucky that the leakage didn’t damage the two ICs that are Bose in-house model and not being sold as spare parts on the market. I only have limited spares.

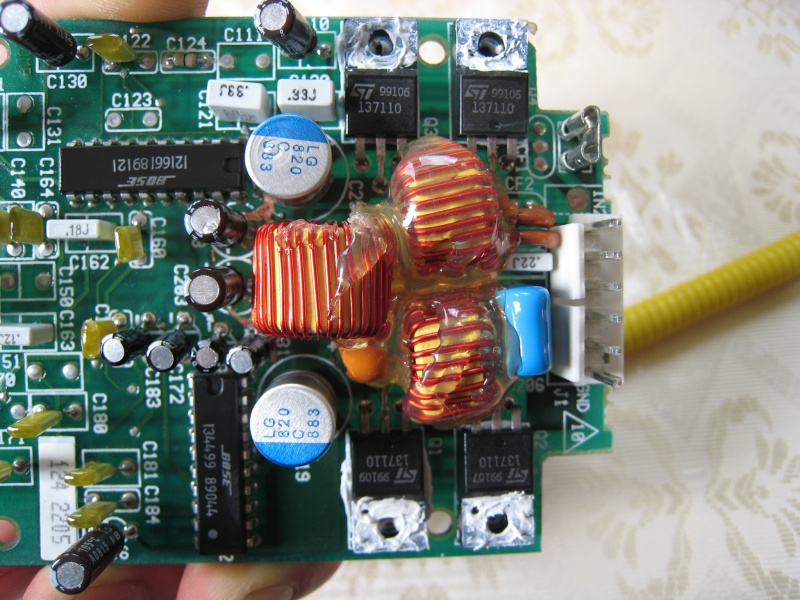

The four FETs were still not damaged so just replaced all of the problematic capacitors.
Attachment 5802

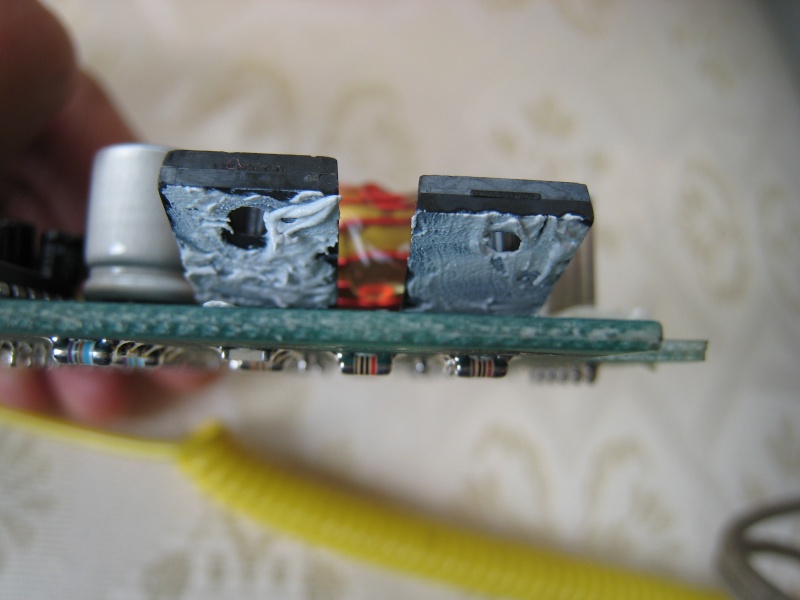

As an extra touch, I applied heat transfer compound on both side of FETs to maximise the effect of heatsink.
Attachment 5803 Attachment 5804

After these process, the amplifier was once again put back on the bench and driven for about 4 hours and then ready to be returned to the owner.

Another happy owner :).

Oh, by the way, if you have broken or removed Bose Speaker Amplifier, please send me an email or PM me. I would like to use it to source the IC for my future repair service. It has to be cheap as I only need the IC and I already have other parts in stock. It also helps in keeping the cost low in order to help other members. Your support and understanding on this would be much appreciated.

Regards,
Kaz
